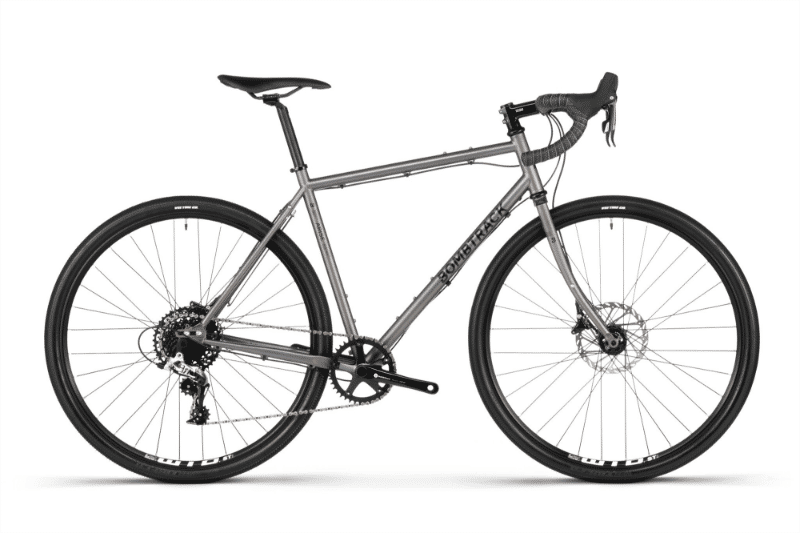

2025 Bombtrack Arise geometry
Full frame geometry for the 2025 Bombtrack Arise, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 351 | 73.5 | 70 | 100 | 506 | 460 | 733 | 55 | 582 | 420 | 995 | 55 | 64 |
| S | 538 | 370 | 73.5 | 70.5 | 130 | 529 | 490 | 762 | 55 | 602 | 420 | 1016 | 55 | 60 |
| M | 572 | 379 | 73 | 70.5 | 150 | 554 | 520 | 799 | 70 | 619 | 435 | 1045 | 55 | 68 |
| L | 602 | 394 | 73 | 71 | 180 | 578 | 550 | 828 | 70 | 639 | 435 | 1065 | 55 | 65 |
| XL | 631 | 409 | 73 | 71 | 210 | 602 | 580 | 857 | 70 | 664 | 435 | 1090 | 55 | 65 |
All measurements in millimetres unless marked (°) for angles.
