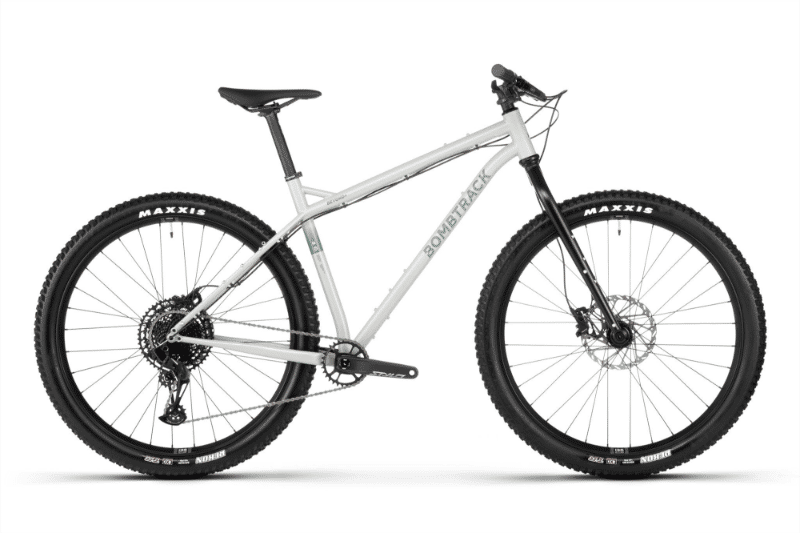

2025 Bombtrack Beyond+ 29 geometry
Full frame geometry for the 2025 Bombtrack Beyond+ 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 395 | 72 | 68.5 | 100 | 575 | 406 | 750 | 70 | 670 | 450 | 1111 | 51 | 87 |
| M | 630 | 415 | 72 | 68.5 | 110 | 598 | 457 | 778 | 70 | 694 | 450 | 1135 | 51 | 87 |
| L | 644 | 434 | 72 | 68.5 | 125 | 622 | 508 | 809 | 70 | 718 | 450 | 1160 | 51 | 87 |
| XL | 653 | 459 | 72 | 68.5 | 135 | 651 | 559 | 836 | 70 | 745 | 450 | 1188 | 51 | 87 |
All measurements in millimetres unless marked (°) for angles.
