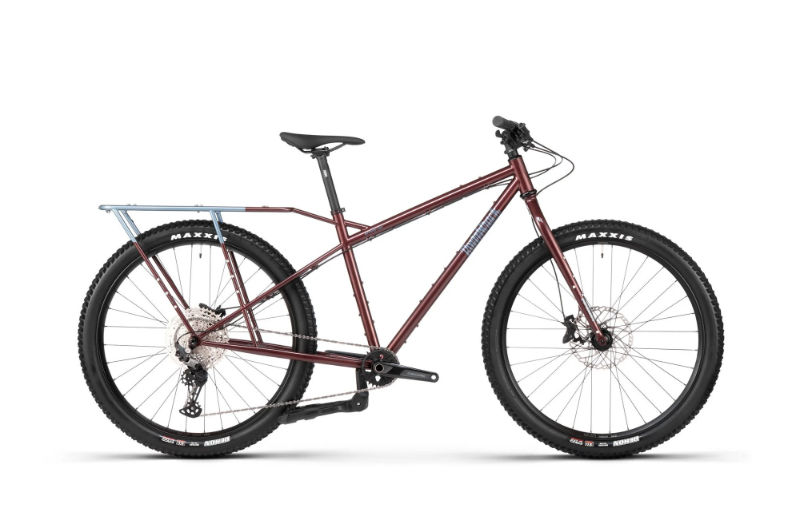

2025 Bombtrack Beyond+ Midtail geometry
Full frame geometry for the 2025 Bombtrack Beyond+ Midtail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 651 | 421 | 74 | 68.5 | 110 | 608 | 510 | 828 | 80 | 705 | 580 | 1275 | 51 | 97 |
| L | 670 | 448 | 74 | 68.5 | 130 | 641 | 510 | 837 | 80 | 740 | 580 | 1310 | 51 | 97 |
| XL | 688 | 476 | 74 | 68.5 | 150 | 674 | 510 | 847 | 80 | 775 | 580 | 1345 | 51 | 97 |
All measurements in millimetres unless marked (°) for angles.
