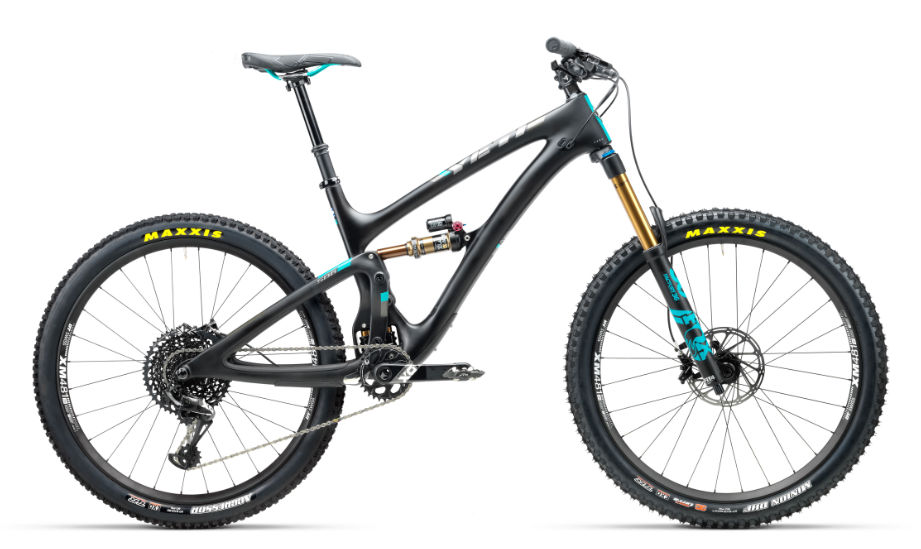

2018 Yeti SB6 geometry
Full frame geometry for the 2018 Yeti SB6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 575 | 384 | 73.5 | 65.5 | 94 | 554 | 381 | 754 | 692 | 442 | 1134 | 44 |
| S | 590 | 404 | 73.4 | 65.5 | 110 | 580 | 419 | 757 | 719 | 442 | 1161 | 44 |
| M | 600 | 426 | 73.3 | 65.5 | 121 | 606 | 445 | 759 | 746 | 442 | 1188 | 44 |
| L | 615 | 447 | 73.2 | 65.5 | 138 | 632 | 483 | 759 | 773 | 442 | 1215 | 44 |
| XL | 635 | 466 | 73.2 | 65.5 | 160 | 658 | 521 | 759 | 801 | 442 | 1243 | 44 |
All measurements in millimetres unless marked (°) for angles.
