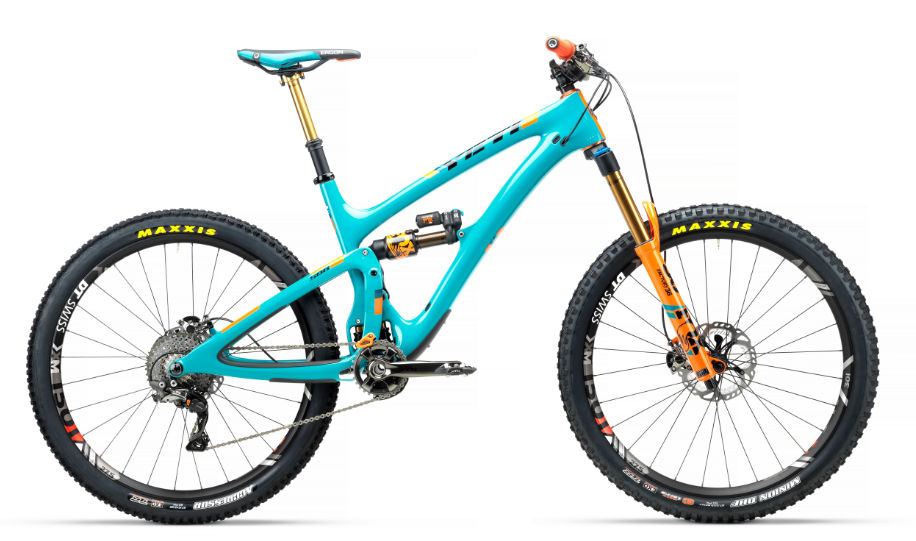

2018 Yeti SB6-TR geometry
Full frame geometry for the 2018 Yeti SB6-TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 379 | 73.1 | 65 | 94 | 555 | 381 | 762 | 696 | 442 | 1138 | 44 |
| S | 593 | 400 | 73 | 65.1 | 110 | 581 | 419 | 765 | 723 | 442 | 1165 | 44 |
| M | 604 | 422 | 72.9 | 65.1 | 121 | 608 | 445 | 766 | 750 | 442 | 1192 | 44 |
| L | 619 | 442 | 72.8 | 65.1 | 138 | 634 | 483 | 767 | 777 | 442 | 1219 | 44 |
| XL | 639 | 461 | 72.7 | 65.1 | 160 | 659 | 521 | 766 | 805 | 442 | 1247 | 44 |
All measurements in millimetres unless marked (°) for angles.
