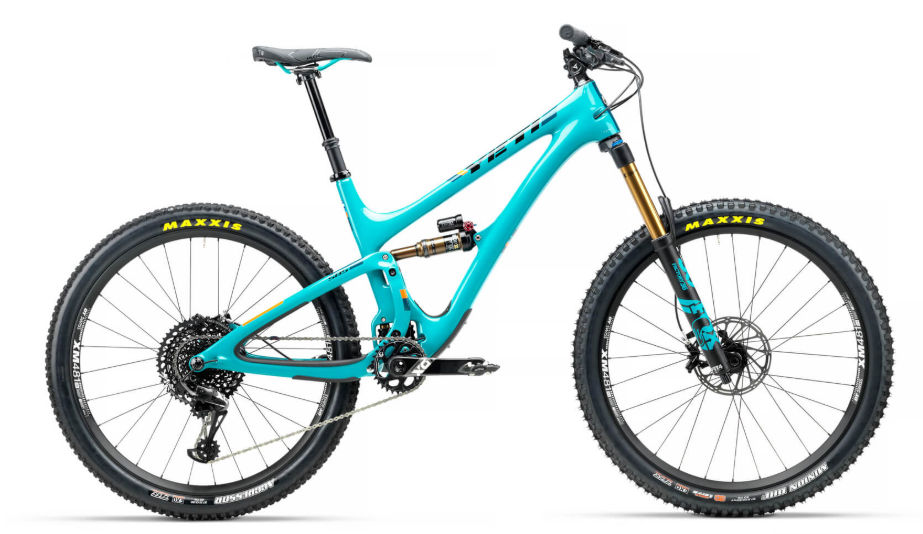

2018 Yeti SB5LR geometry
Full frame geometry for the 2018 Yeti SB5LR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 419 | 73.1 | 66.1 | 127 | 605 | 445 | 732 | 735 | 437 | 1172 | 44 |
| L | 629 | 439 | 73.1 | 66.1 | 144 | 630 | 483 | 745 | 762 | 437 | 1199 | 44 |
| XL | 648 | 458 | 73.1 | 66.1 | 165 | 656 | 521 | 757 | 790 | 437 | 1226 | 44 |
All measurements in millimetres unless marked (°) for angles.
