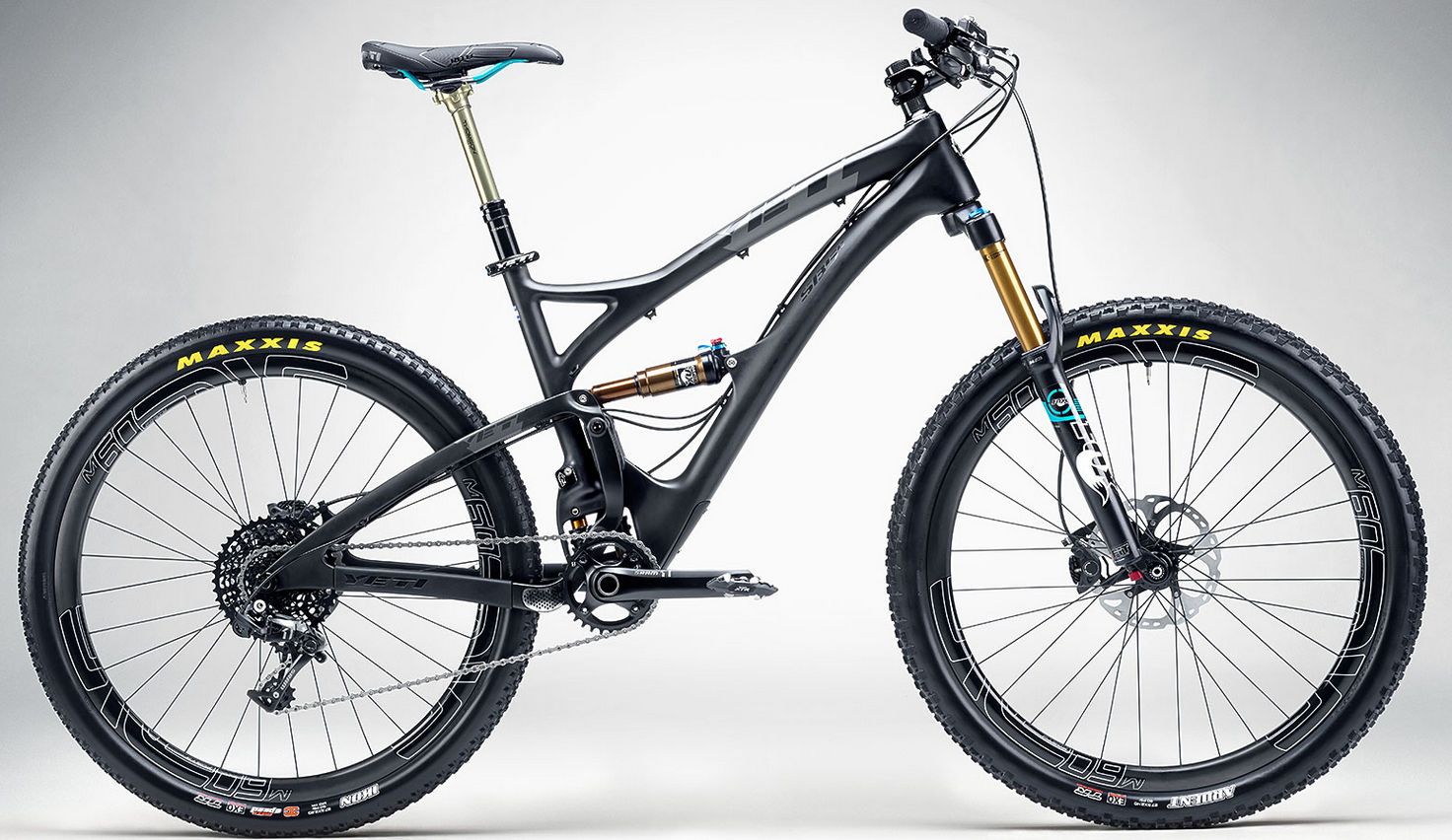

2015 Yeti SB5C geometry
Full frame geometry for the 2015 Yeti SB5C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 394 | 73 | 67 | 109 | 574 | 419 | 754 | 442 | 1128 | 44 |
| M | 599 | 414 | 73 | 67 | 122 | 599 | 445 | 757 | 442 | 1156 | 44 |
| XS | 599 | 371 | 73 | 67 | 94 | 549 | 381 | 752 | 442 | 1102 | 44 |
| L | 620 | 434 | 73 | 67 | 142 | 625 | 483 | 762 | 442 | 1184 | 44 |
| XL | 635 | 455 | 73 | 67 | 160 | 650 | 521 | 775 | 442 | 1209 | 44 |
All measurements in millimetres unless marked (°) for angles.
