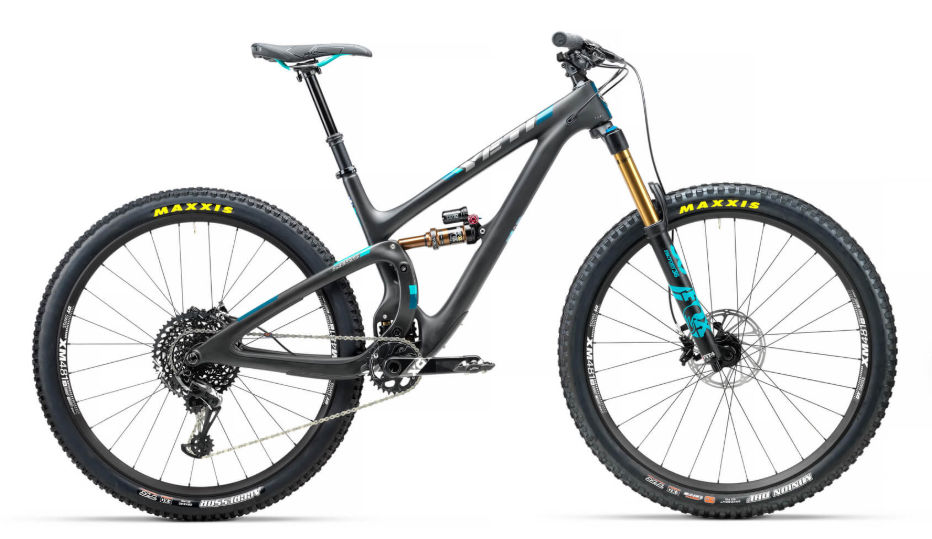

2018 Yeti SB5.5 geometry
Full frame geometry for the 2018 Yeti SB5.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 421 | 73.6 | 66.5 | 90 | 601 | 445 | 743 | 731 | 437 | 1168 | 51 |
| L | 624 | 442 | 73.6 | 66.5 | 105 | 626 | 483 | 755 | 758 | 437 | 1195 | 51 |
| XL | 639 | 463 | 73.6 | 66.5 | 121 | 652 | 521 | 767 | 785 | 437 | 1222 | 51 |
All measurements in millimetres unless marked (°) for angles.
