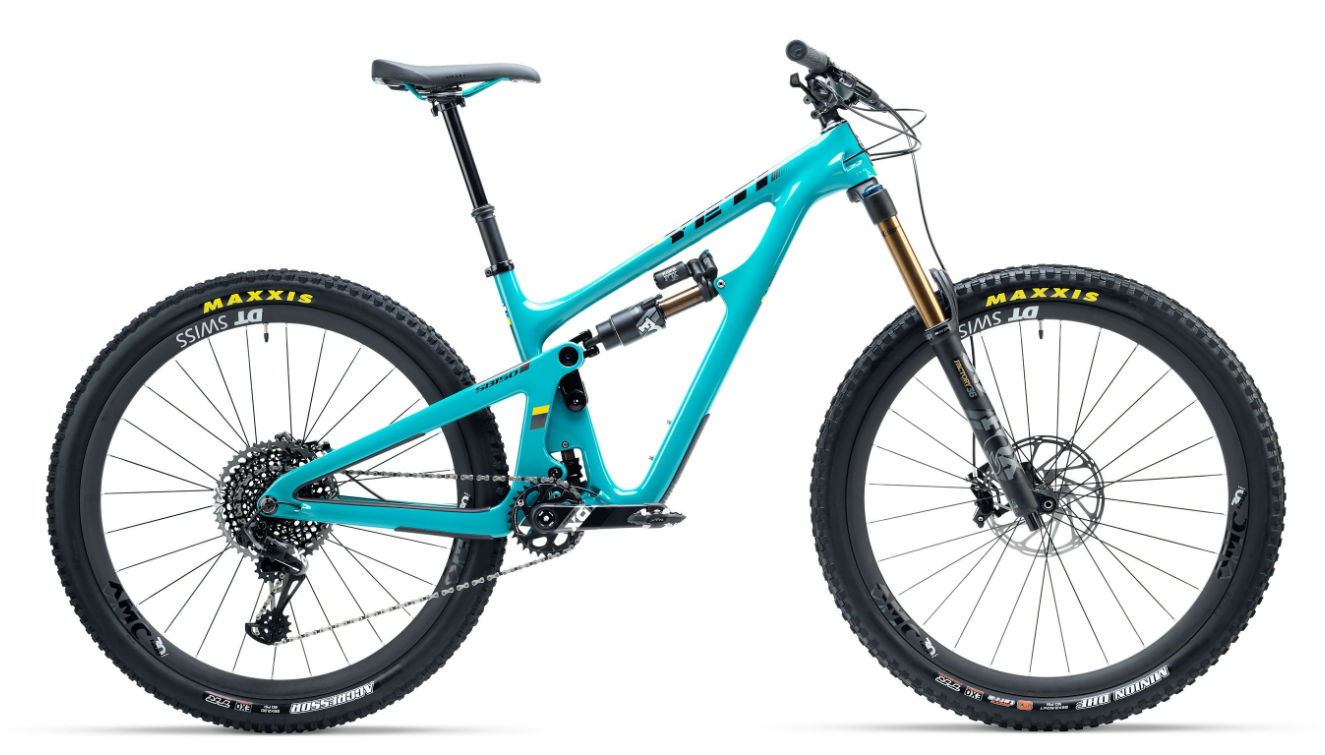

2019 Yeti SB150 geometry
Full frame geometry for the 2019 Yeti SB150, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 613 | 430 | 77 | 64.5 | 95 | 572 | 380 | 721 | 760 | 433 | 1192 | 44 |
| M | 614 | 460 | 77 | 64.5 | 97 | 602 | 410 | 728 | 790 | 433 | 1223 | 44 |
| L | 625 | 480 | 76.9 | 64.5 | 108 | 626 | 450 | 741 | 815 | 433 | 1248 | 44 |
| XL | 635 | 505 | 76.8 | 64.5 | 119 | 654 | 495 | 762 | 845 | 433 | 1278 | 44 |
All measurements in millimetres unless marked (°) for angles.
