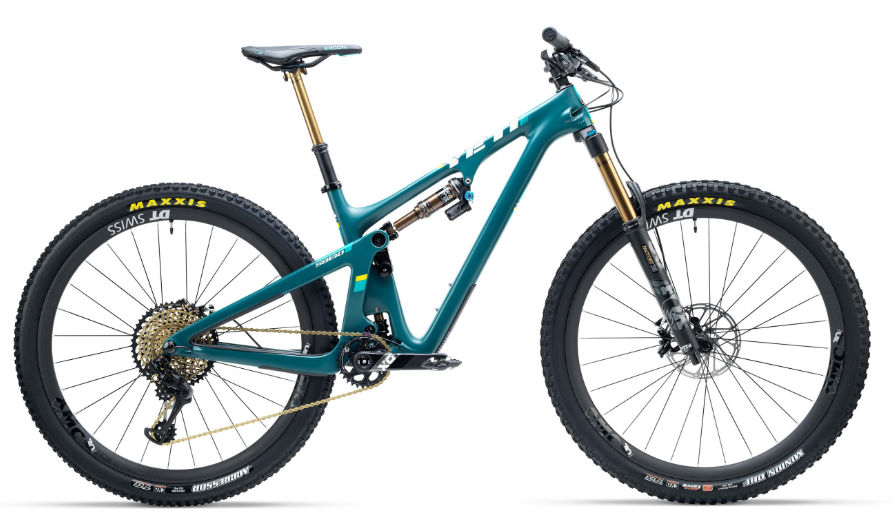

2019 Yeti SB130 geometry
Full frame geometry for the 2019 Yeti SB130, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 611 | 430 | 77.1 | 65.5 | 95 | 571 | 380 | 724 | 433 | 1174 | 44 |
| M | 615 | 460 | 77 | 65.5 | 99 | 602 | 410 | 726 | 433 | 1206 | 44 |
| L | 625 | 480 | 76.9 | 65.5 | 110 | 625 | 450 | 728 | 433 | 1230 | 44 |
| XL | 635 | 505 | 76.9 | 65.5 | 121 | 653 | 495 | 731 | 433 | 1260 | 44 |
All measurements in millimetres unless marked (°) for angles.
