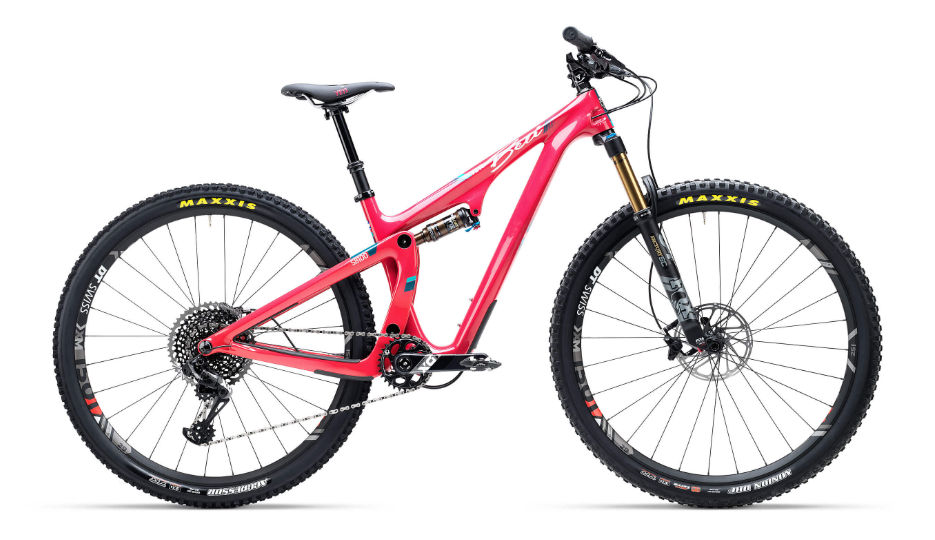

2019 Yeti SB100 Beti geometry
Full frame geometry for the 2019 Yeti SB100 Beti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 407 | 74.3 | 67.8 | 96 | 577 | 393 | 724 | 685 | 437 | 1122 | 44 |
| M | 612 | 432 | 74.2 | 67.8 | 107 | 605 | 419 | 724 | 714 | 437 | 1151 | 44 |
All measurements in millimetres unless marked (°) for angles.
