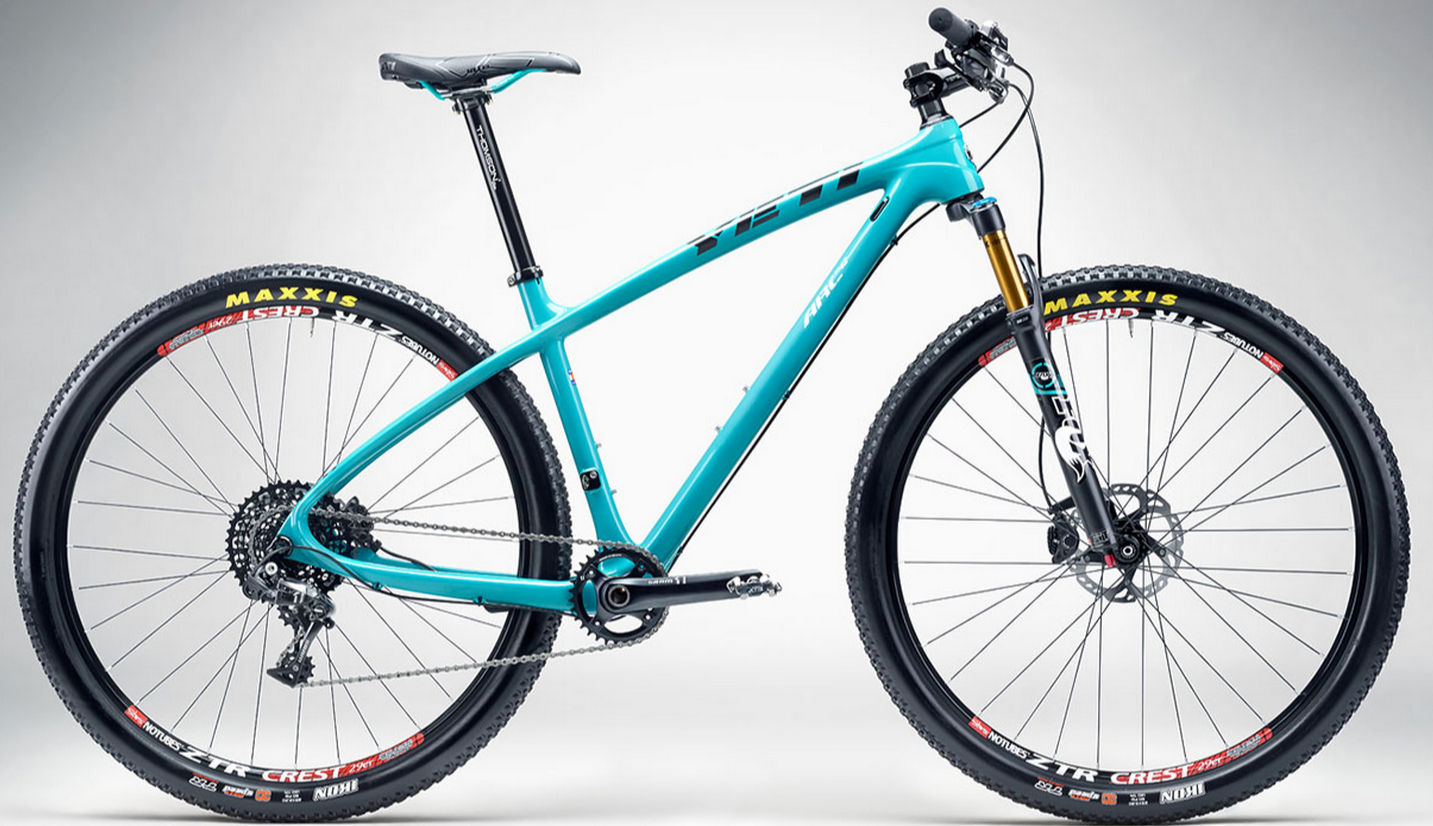

2015 Yeti ARC Carbon geometry
Full frame geometry for the 2015 Yeti ARC Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 383 | 72 | 70 | 99 | 572 | 394 | 704 | 45 | 429 | 1057 | 44 |
| XS | 583 | 357 | 72 | 70 | 99 | 546 | 356 | 673 | 45 | 429 | 1031 | 44 |
| M | 604 | 409 | 72 | 70 | 99 | 605 | 445 | 734 | 55 | 434 | 1100 | 44 |
| L | 633 | 424 | 72 | 70 | 130 | 630 | 483 | 759 | 55 | 434 | 1125 | 44 |
| XL | 652 | 443 | 72 | 70 | 150 | 655 | 533 | 785 | 55 | 434 | 1151 | 44 |
All measurements in millimetres unless marked (°) for angles.
