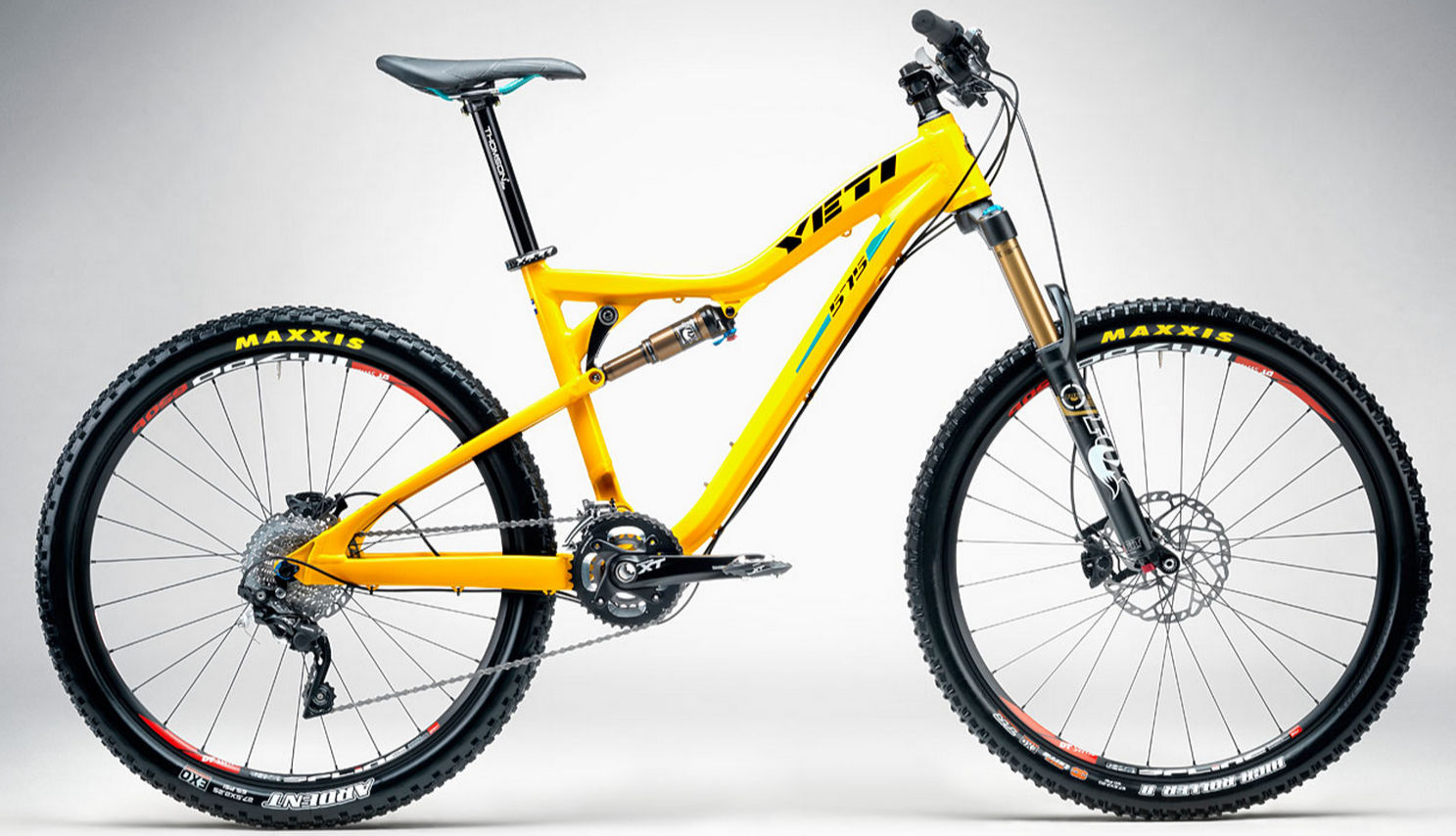

2015 Yeti 575 geometry
Full frame geometry for the 2015 Yeti 575, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 574 | 371 | 72 | 67 | 94 | 554 | 399 | 734 | 445 | 1105 | 44 |
| S | 589 | 394 | 72 | 67 | 112 | 579 | 419 | 739 | 445 | 1133 | 44 |
| M | 599 | 414 | 72 | 67 | 122 | 605 | 445 | 744 | 445 | 1163 | 44 |
| L | 615 | 434 | 72 | 67 | 137 | 630 | 495 | 749 | 445 | 1184 | 44 |
| XL | 635 | 450 | 72 | 67 | 160 | 650 | 521 | 754 | 445 | 1207 | 44 |
All measurements in millimetres unless marked (°) for angles.
