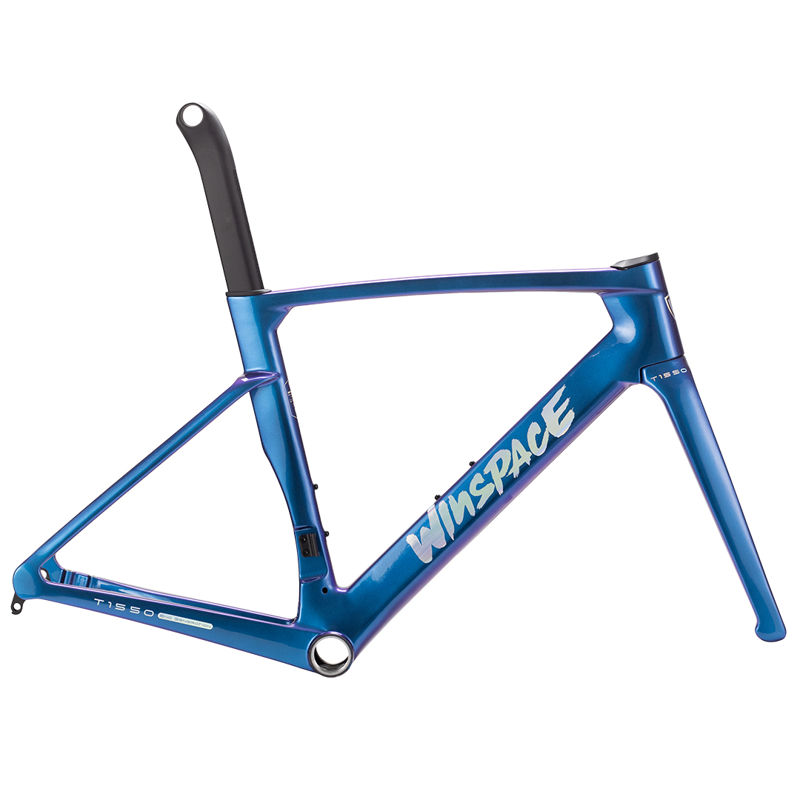

2024 Winspace T1550 2nd Gen geometry
Full frame geometry for the 2024 Winspace T1550 2nd Gen, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504.7 | 363 | 75.1 | 70.7 | 105 | 497.3 | 440 | 72 | 408 | 969.1 | 50 | 65 |
| S | 521.8 | 372 | 74.3 | 71.5 | 120 | 518.7 | 470 | 72 | 408 | 976.8 | 50 | 60.3 |
| M | 534.9 | 381 | 74 | 72 | 130 | 534.4 | 490 | 72 | 408 | 979.3 | 44 | 63.3 |
| L | 560.4 | 388 | 73.5 | 72.5 | 155 | 554 | 520 | 72 | 408 | 989.7 | 44 | 60.3 |
| XL | 585.7 | 397 | 73 | 72.9 | 180 | 576 | 550 | 72 | 408 | 1002.6 | 44 | 57.7 |
All measurements in millimetres unless marked (°) for angles.
