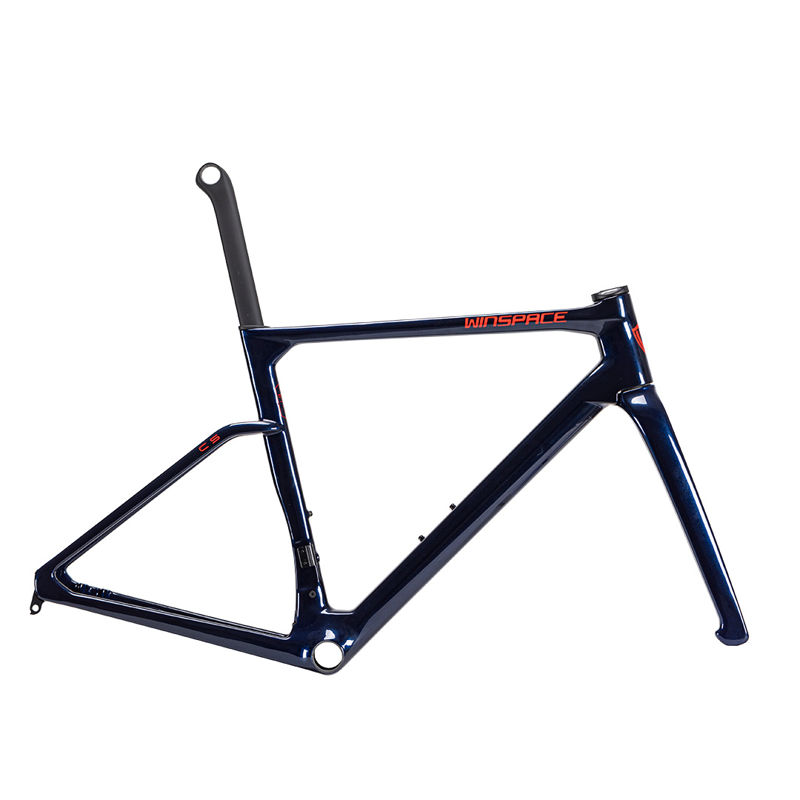

2024 Winspace C5 geometry
Full frame geometry for the 2024 Winspace C5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 365 | 75.4 | 70.6 | 110 | 499 | 435 | 728 | 72 | 412 | 973 | 45 | 70.5 |
| S | 528 | 372 | 74.9 | 71.3 | 125 | 515 | 465 | 752 | 72 | 412 | 980 | 45 | 66.4 |
| M | 542 | 382 | 74 | 72.1 | 135 | 537 | 485 | 767 | 72 | 412 | 982 | 40 | 66.6 |
| L | 557 | 387 | 73.5 | 72.3 | 150 | 552 | 515 | 790 | 72 | 412 | 989 | 40 | 65.5 |
| XL | 571 | 397 | 73.1 | 72.3 | 165 | 571 | 535 | 806 | 72 | 412 | 1004 | 40 | 65.4 |
All measurements in millimetres unless marked (°) for angles.
