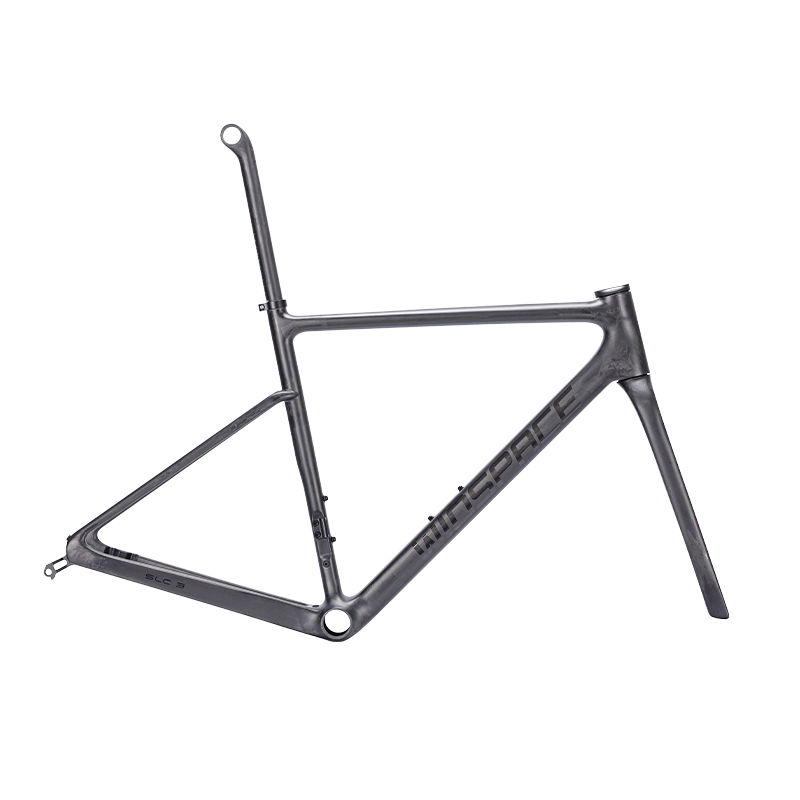

2024 Winspace SLC3 geometry
Full frame geometry for the 2024 Winspace SLC3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 366 | 74.9 | 70.7 | 108 | 503 | 460 | 725 | 72 | 407 | 971 | 49 | 66 |
| S | 520 | 372 | 74.4 | 71.3 | 118 | 517 | 480 | 741 | 72 | 407 | 976 | 49 | 62.4 |
| M | 536 | 382 | 74 | 72 | 130 | 536 | 500 | 759 | 72 | 407 | 980 | 45 | 62.3 |
| L | 556 | 389 | 73.5 | 72.3 | 150 | 554 | 530 | 784 | 72 | 407 | 991 | 45 | 60.5 |
| XL | 581 | 399 | 73 | 72.6 | 175 | 576 | 550 | 805 | 72 | 407 | 1006 | 45 | 58.7 |
All measurements in millimetres unless marked (°) for angles.
