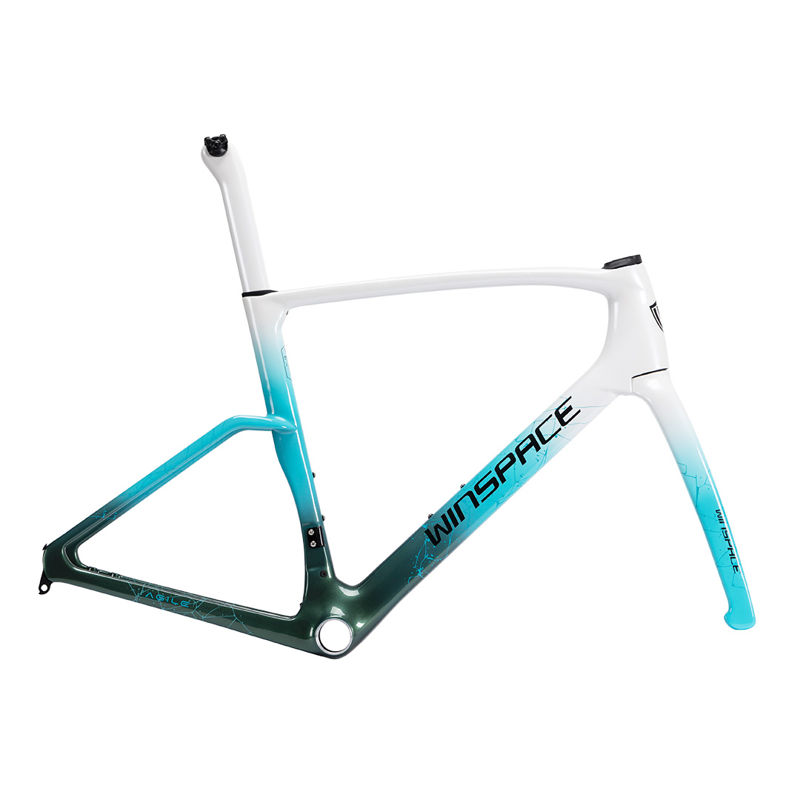

2024 Winspace Agile geometry
Full frame geometry for the 2024 Winspace Agile, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 367 | 75.3 | 71 | 112 | 500.8 | 410 | 717 | 68 | 408 | 969.1 | 45 | 68.2 |
| S | 517.4 | 371 | 74.2 | 71.2 | 119 | 517.4 | 440 | 740 | 68 | 408 | 973.8 | 45 | 65.7 |
| M | 520.1 | 382 | 74 | 72 | 119 | 531.1 | 470 | 763 | 68 | 403 | 973.4 | 45 | 61 |
| L | 561.7 | 390 | 74 | 73 | 159 | 551.1 | 510 | 800 | 68 | 408 | 985.2 | 42 | 59.4 |
| XL | 586.6 | 400 | 73.3 | 73 | 185 | 576 | 550 | 836 | 68 | 408 | 1007.9 | 42 | 59.4 |
All measurements in millimetres unless marked (°) for angles.
