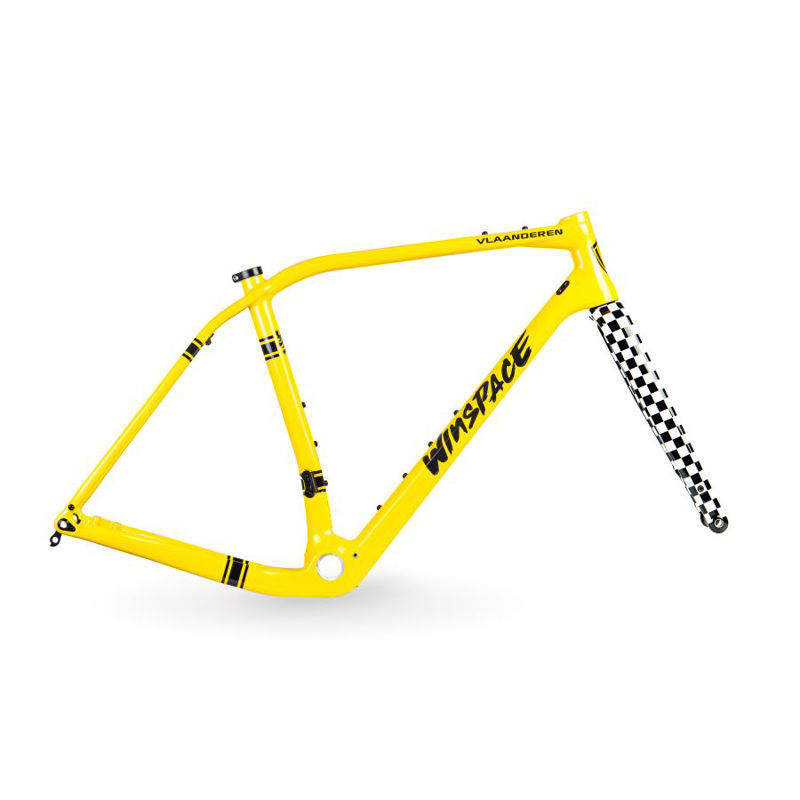

2022 Winspace B09 CX geometry
Full frame geometry for the 2022 Winspace B09 CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 556 | 380 | 73.5 | 71.5 | 148 | 545 | 480 | 68.5 | 593 | 415 | 998 | 44 | 70 |
All measurements in millimetres unless marked (°) for angles.
