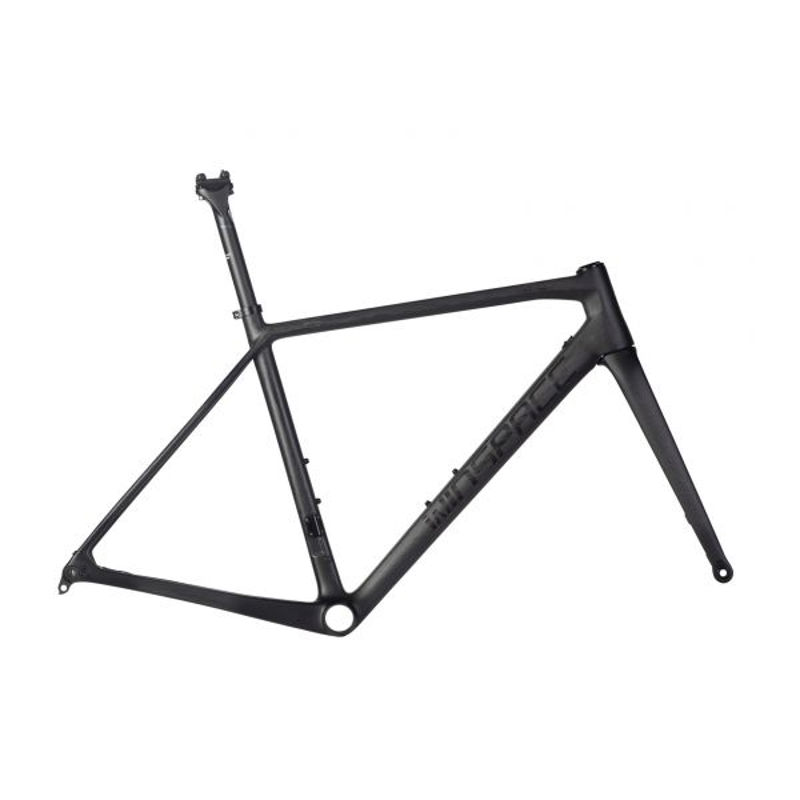

2022 Winspace SLC 2.0 geometry
Full frame geometry for the 2022 Winspace SLC 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 372 | 75 | 70.5 | 100 | 505 | 450 | 695 | 70 | 406 | 971 | 45 | 72 |
| S | 513 | 378 | 74.5 | 71.5 | 115 | 520 | 470 | 725 | 70 | 406 | 973 | 45 | 65 |
| M | 529 | 383 | 74 | 72 | 130 | 535 | 490 | 760 | 70 | 406 | 980 | 45 | 63 |
| L | 550 | 392 | 73.5 | 72.5 | 150 | 550 | 520 | 775 | 70 | 406 | 991 | 45 | 58 |
| XL | 575 | 399 | 73 | 73 | 175 | 575 | 550 | 790 | 70 | 406 | 1005 | 45 | 56 |
| XXL | 599 | 406 | 72.5 | 73 | 200 | 595 | 580 | 815 | 70 | 406 | 1019 | 45 | 56 |
| — | — | — | — | — | — | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
