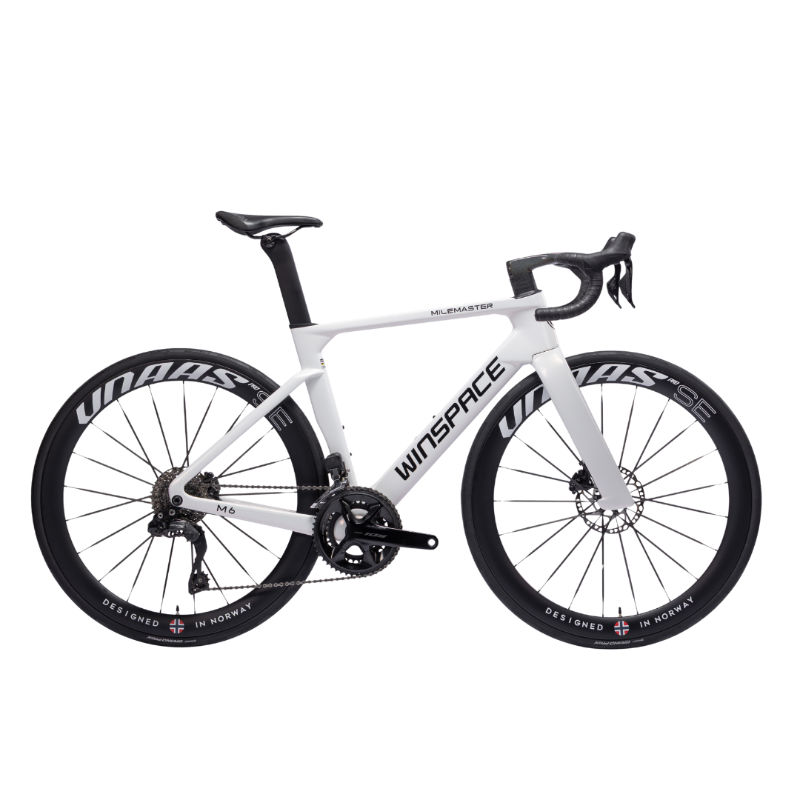

2026 Winspace M6 geometry
Full frame geometry for the 2026 Winspace M6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 365 | 74.9 | 70.8 | 107 | 502 | 430 | 729 | 72 | 410 | 972 | 49 | 65.4 |
| S | 521 | 374 | 74.9 | 71.3 | 120 | 514 | 460 | 752 | 72 | 410 | 981 | 49 | 62.4 |
| M | 535 | 383 | 74 | 72.2 | 130 | 536 | 480 | 769 | 72 | 410 | 980 | 43 | 63.1 |
| L | 550 | 391 | 73.5 | 72.3 | 145 | 554 | 510 | 791 | 72 | 410 | 992 | 43 | 62.5 |
| XL | 564 | 400 | 73.1 | 72.3 | 160 | 571 | 530 | 808 | 72 | 410 | 1006 | 43 | 62.5 |
| XXL | 593 | 407 | 73.1 | 73.2 | 187 | 587 | 560 | 837 | 72 | 410 | 1013 | 43 | 57.2 |
All measurements in millimetres unless marked (°) for angles.
