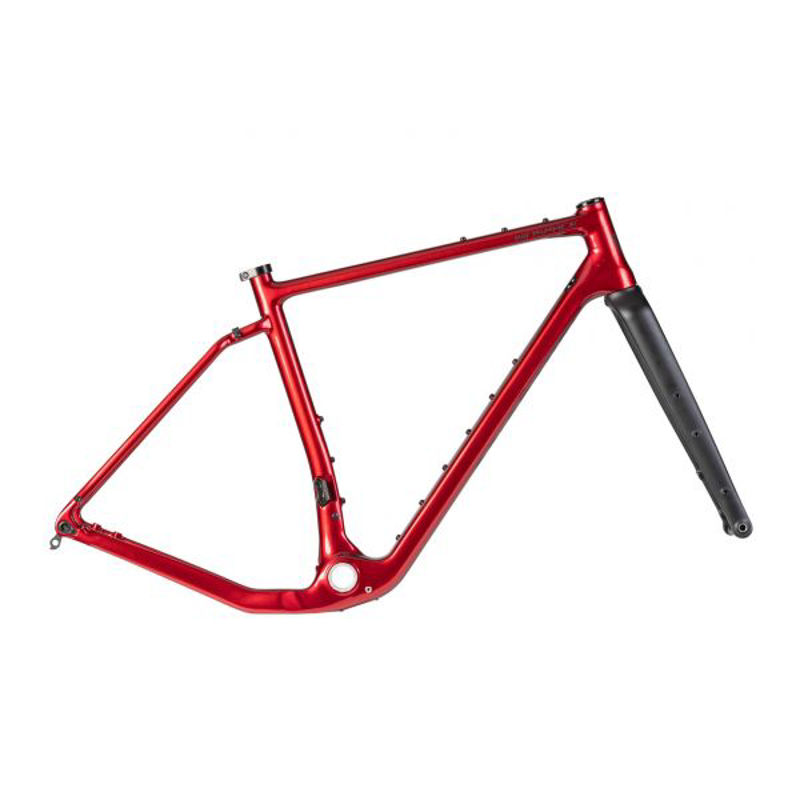

2022 Winspace G2 Gravel geometry
Full frame geometry for the 2022 Winspace G2 Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 363 | 73.5 | 70 | 110 | 521 | 450 | 77.5 | 594 | 415 | 991 | 51 | 73 |
| S | 563 | 375 | 73.5 | 70.8 | 137 | 542 | 480 | 75 | 604 | 420 | 1013 | 51 | 68 |
| M | 590 | 384 | 73.5 | 70.8 | 165 | 559 | 510 | 75 | 622 | 425 | 1036 | 51 | 68 |
| L | 616 | 392 | 73.5 | 70.8 | 195 | 574 | 540 | 72.5 | 639 | 430 | 1059 | 51 | 68 |
| — | — | — | — | — | — | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
