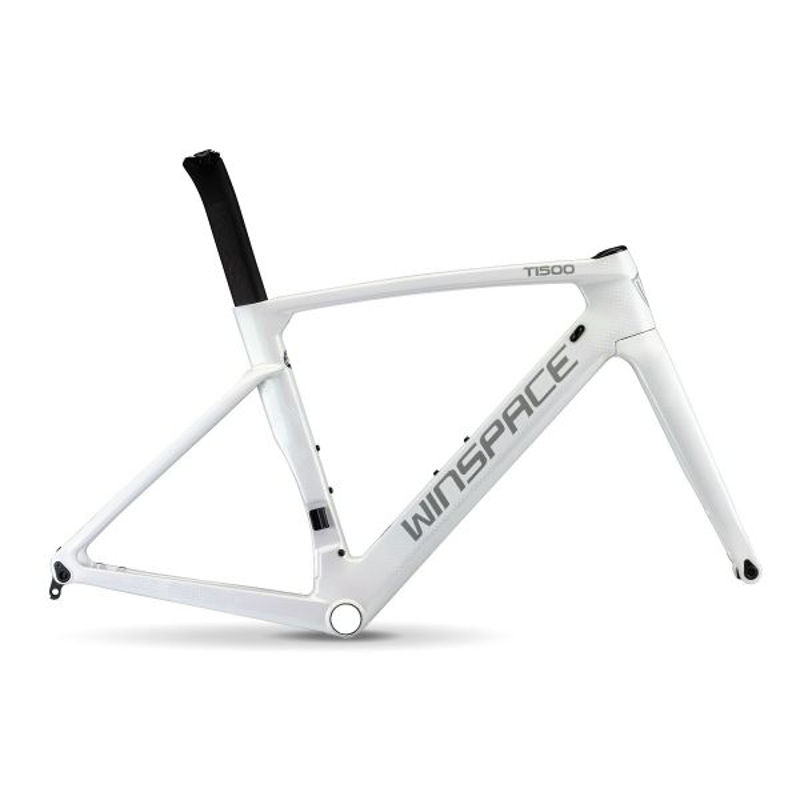

2022 Winspace T1500 geometry
Full frame geometry for the 2022 Winspace T1500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 370 | 75.5 | 71 | 105 | 500 | 410 | 685 | 68 | 403 | 964 | 45 | 69 |
| S | 507 | 374 | 74.5 | 71 | 110 | 515 | 440 | 705 | 68 | 403 | 970 | 45 | 69 |
| M | 517 | 382 | 74 | 72 | 120 | 530 | 470 | 750 | 68 | 403 | 974 | 45 | 63 |
| L | 547 | 393 | 74 | 73 | 145 | 550 | 510 | 770 | 68 | 408 | 989 | 45 | 56 |
| XL | 571 | 411 | 73.5 | 73 | 170 | 580 | 550 | 785 | 68 | 408 | 1014 | 45 | 56 |
| — | — | — | — | — | — | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
