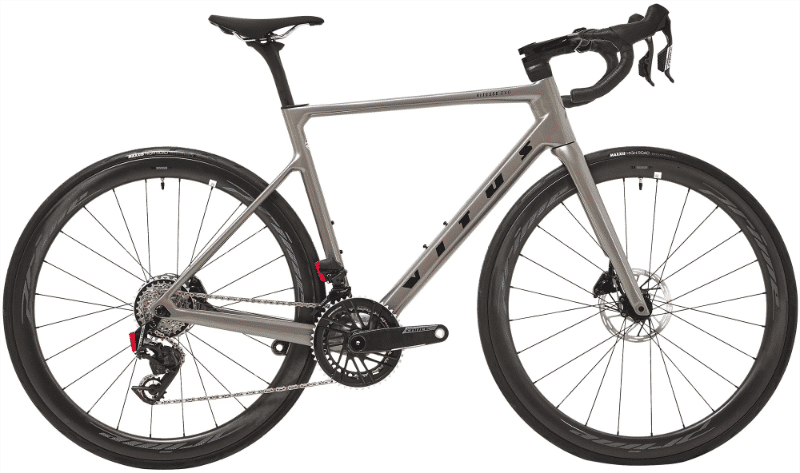

2026 Vitus Vitesse EVO geometry
Full frame geometry for the 2026 Vitus Vitesse EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502.9 | 375.9 | 73.6 | 70.9 | 104.5 | 523.9 | 470 | 754.4 | 70 | 583 | 410 | 983 | 51 |
| S | 524 | 381 | 73.5 | 71.6 | 127.3 | 537.1 | 490 | 775.4 | 69 | 592 | 410 | 992 | 51 |
| M | 547 | 387 | 73.4 | 72.4 | 145 | 550.9 | 510 | 796.3 | 69 | 591 | 410 | 991 | 45 |
| L | 565 | 396 | 73.3 | 72.9 | 162.7 | 565.6 | 530 | 815.7 | 68 | 599.9 | 410 | 1000.4 | 45 |
| XL | 582 | 402 | 73.2 | 73.2 | 179.5 | 577.7 | 550 | 833.6 | 68 | 608 | 410 | 1008.5 | 45 |
| XXL | 599 | 410 | 73.5 | 73.5 | 196.1 | 587.7 | 570 | 852.1 | 68 | 618.2 | 410 | 1018.8 | 45 |
All measurements in millimetres unless marked (°) for angles.
