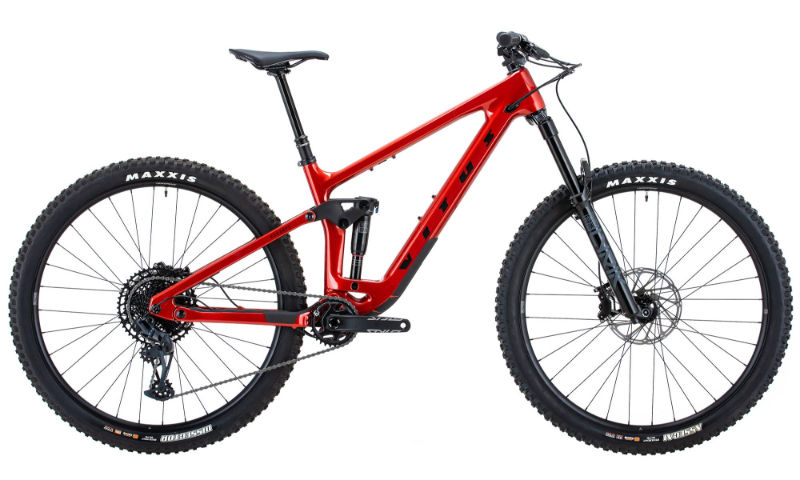

2026 Vitus Escarpe 290 geometry
Full frame geometry for the 2026 Vitus Escarpe 290, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 437 | 77 | 65 | 100 | 566 | 380 | 35 | 440 | 1188 | 44 |
| M | 625 | 451 | 77 | 65 | 110 | 595 | 410 | 35 | 440 | 1218 | 44 |
| L | 634 | 478 | 77.5 | 65 | 120 | 619 | 440 | 35 | 440 | 1249 | 44 |
| XL | 642 | 522 | 78 | 65 | 130 | 660 | 480 | 35 | 440 | 1297 | 44 |
All measurements in millimetres unless marked (°) for angles.
