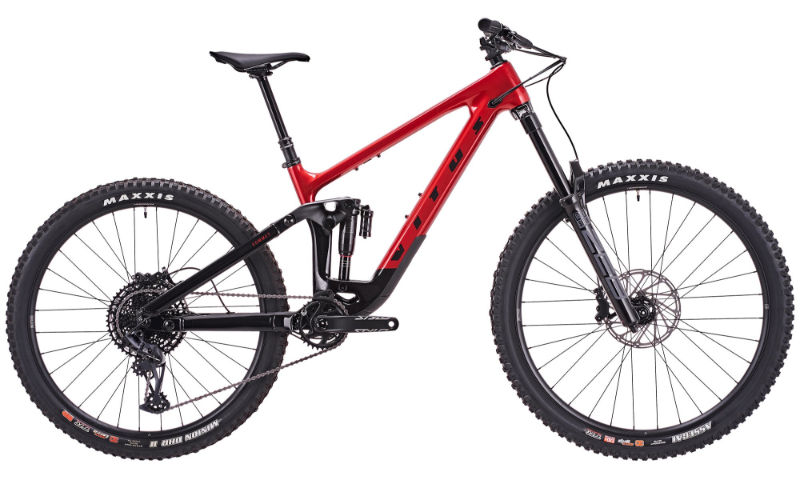

2026 Vitus Sommet 297 geometry
Full frame geometry for the 2026 Vitus Sommet 297, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 418 | 76.5 | 64 | 100 | 568 | 380 | 25 | 435 | 1195 | 44 |
| M | 630 | 444 | 76.5 | 64 | 110 | 597 | 410 | 25 | 435 | 1225 | 44 |
| L | 639 | 472 | 77 | 64 | 120 | 621 | 440 | 25 | 435 | 1257 | 44 |
| XL | 648 | 516 | 77.5 | 64 | 130 | 662 | 470 | 25 | 435 | 1302 | 44 |
All measurements in millimetres unless marked (°) for angles.
