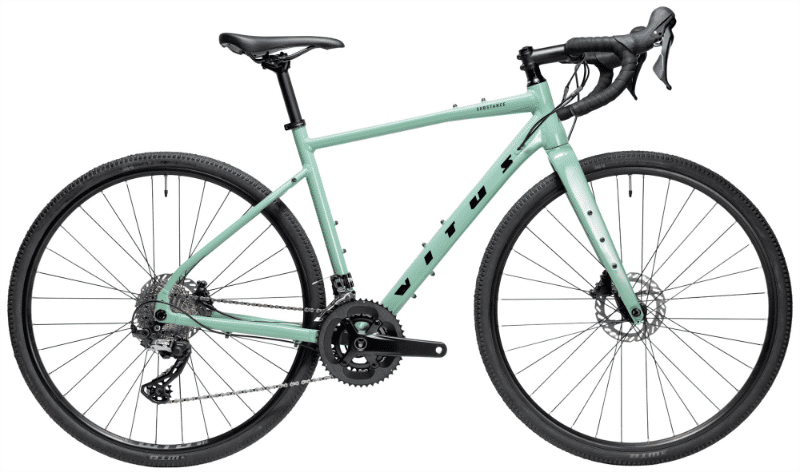

2026 Vitus Substance geometry
Full frame geometry for the 2026 Vitus Substance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 371 | 74.2 | 70.6 | 112 | 522 | 475 | 70 | 591.4 | 436 | 1017.6 | 48 |
| S | 551 | 377 | 74 | 71.3 | 127 | 535 | 495 | 70 | 596.6 | 436 | 1022.9 | 48 |
| M | 568 | 382 | 73.5 | 71.5 | 144 | 550 | 515 | 70 | 605.1 | 436 | 1031.4 | 48 |
| L | 577 | 391 | 73.5 | 71.5 | 154 | 562 | 535 | 70 | 617.4 | 436 | 1043.8 | 48 |
| XL | 595 | 398 | 73.2 | 71.5 | 173 | 578 | 555 | 70 | 630.6 | 440 | 1057.1 | 48 |
| XXL | 606 | 412 | 73.2 | 71.8 | 184 | 595 | 575 | 70 | 645.2 | 440 | 1071.7 | 48 |
All measurements in millimetres unless marked (°) for angles.
