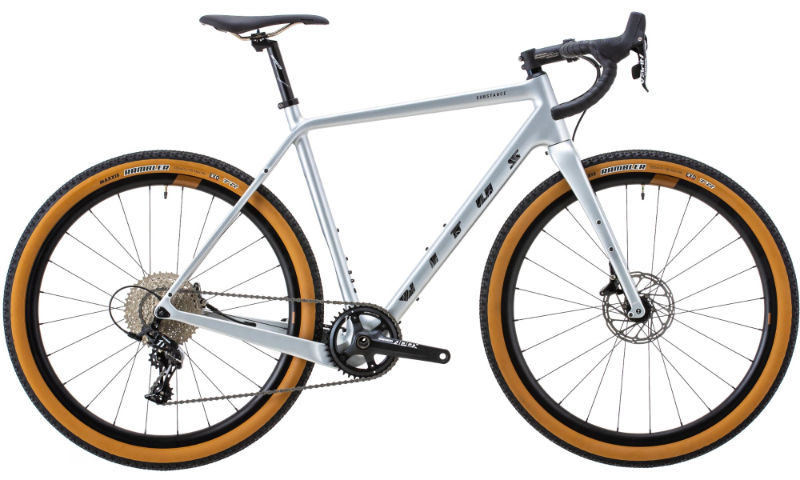

2026 Vitus Substance Carbon geometry
Full frame geometry for the 2026 Vitus Substance Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536.6 | 366 | 73.5 | 70.5 | 120 | 525 | 490 | 68 | 589.1 | 435 | 1020 | 50 |
| S | 557.4 | 369.8 | 73.5 | 71 | 140 | 535 | 520 | 68 | 595.3 | 435 | 1021 | 50 |
| M | 568 | 371 | 73 | 71.5 | 150 | 545 | 540 | 68 | 595.4 | 435 | 1025 | 50 |
| L | 589.8 | 379.6 | 73 | 72 | 170 | 560 | 560 | 68 | 605.7 | 435 | 1036 | 50 |
| XL | 608.9 | 382.9 | 72.5 | 72 | 190 | 575 | 580 | 68 | 615.2 | 435 | 1052 | 50 |
All measurements in millimetres unless marked (°) for angles.
