2025 Vitus · RD

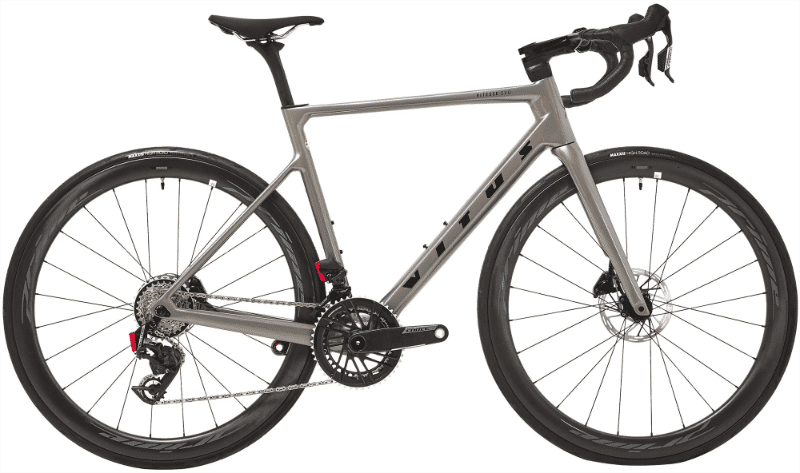

2025 Vitus Vitesse EVO geometry
Full frame geometry for the 2025 Vitus Vitesse EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| XS | 522 | 366 | 74.5 | 71.5 | 72 | 415 | — |
| S | 534 | 376 | 74.2 | 72.2 | 72 | 415 | — |
| M | 548 | 382 | 73.5 | 73 | 69 | 415 | — |
| L | 563 | 393 | 73.5 | 73 | 69 | 415 | 1000 |
| XL | 582 | 403 | 73 | 73.5 | 69 | 415 | 1012 |
| XXL | 601 | 407 | 72.5 | 73.5 | 67 | 415 | 1021 |
All measurements in millimetres unless marked (°) for angles.
