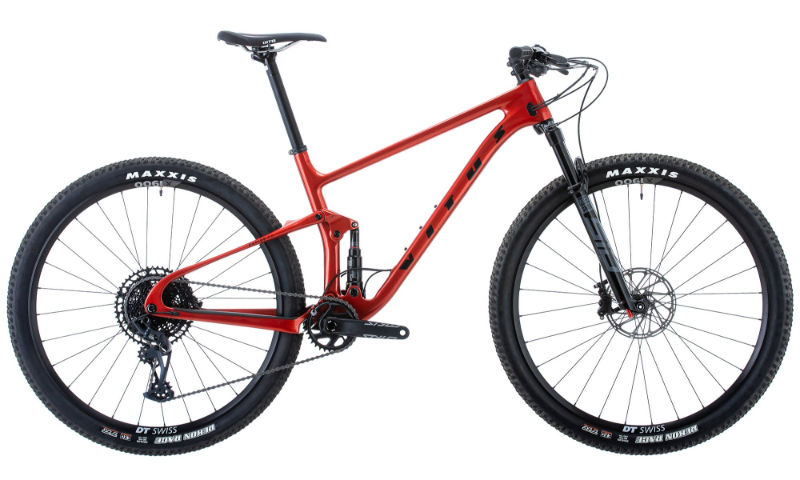

2026 Vitus Rapide FS geometry
Full frame geometry for the 2026 Vitus Rapide FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 445 | 77 | 67 | 95 | 578 | 410 | 45 | 438 | 1159 | 44 |
| M | 592 | 475 | 77 | 67 | 105 | 612 | 440 | 45 | 438 | 1193 | 44 |
| L | 606 | 500 | 77 | 67 | 120 | 640 | 490 | 45 | 438 | 1224 | 44 |
| XL | 624 | 520 | 77 | 67 | 140 | 664 | 540 | 45 | 438 | 1251 | 44 |
All measurements in millimetres unless marked (°) for angles.
