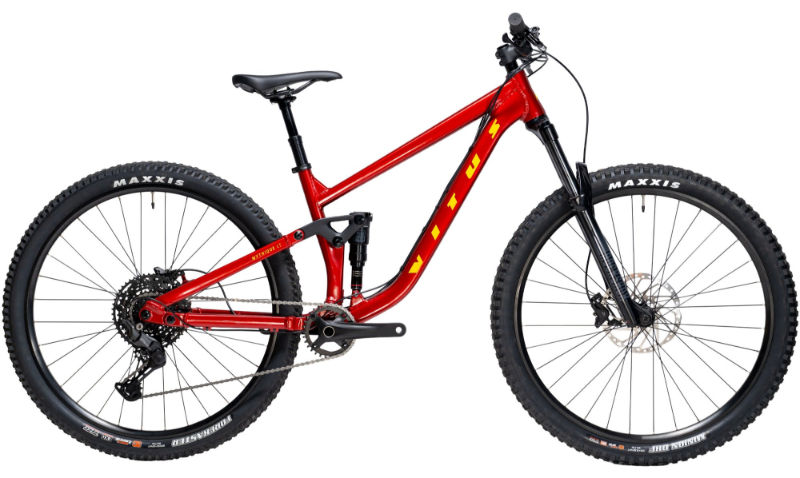

2026 Vitus Mythique geometry
Full frame geometry for the 2026 Vitus Mythique, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 430 | 73 | 65.5 | 110 | 569 | 380 | 40 | 445 | 1183 | 44 |
| M | 634 | 455 | 73 | 65.5 | 120 | 596 | 410 | 40 | 445 | 1212 | 44 |
| L | 643 | 482 | 73 | 65.5 | 130 | 625 | 440 | 40 | 445 | 1244 | 44 |
| XL | 652 | 510 | 73 | 65.5 | 140 | 655 | 480 | 40 | 445 | 1276 | 44 |
All measurements in millimetres unless marked (°) for angles.
