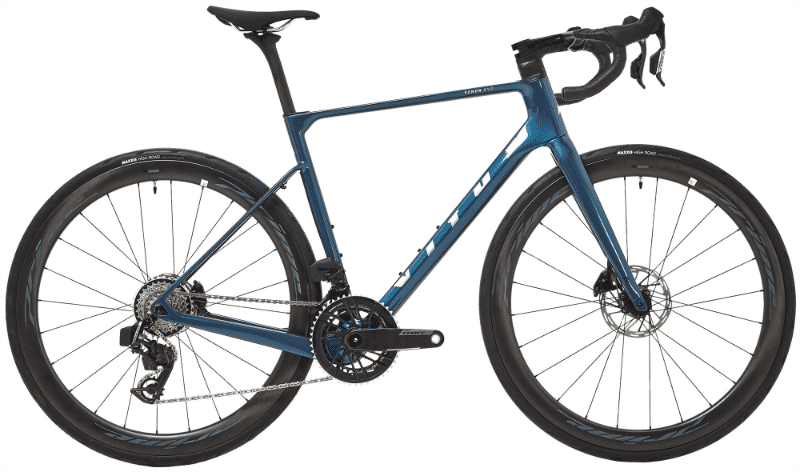

2026 Vitus Venon EVO-RS geometry
Full frame geometry for the 2026 Vitus Venon EVO-RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 373 | 74.6 | 70.7 | 102 | 515 | 460 | 71 | 592 | 420 | 1002 | 50 |
| S | 539 | 379 | 74.2 | 71.1 | 120 | 531 | 480 | 70 | 597 | 420 | 1007 | 50 |
| M | 560 | 387 | 73.8 | 71.5 | 143 | 551 | 500 | 70 | 609 | 420 | 1020 | 50 |
| L | 587 | 396 | 73.4 | 72.1 | 168 | 571 | 520 | 70 | 620 | 420 | 1030 | 50 |
| XL | 607 | 403 | 73 | 72.5 | 187 | 589 | 540 | 70 | 629 | 420 | 1039 | 50 |
| XXL | 625 | 414 | 73 | 72.7 | 206 | 605 | 560 | 70 | 643 | 420 | 1053 | 50 |
All measurements in millimetres unless marked (°) for angles.
