2025 Vitus · RD

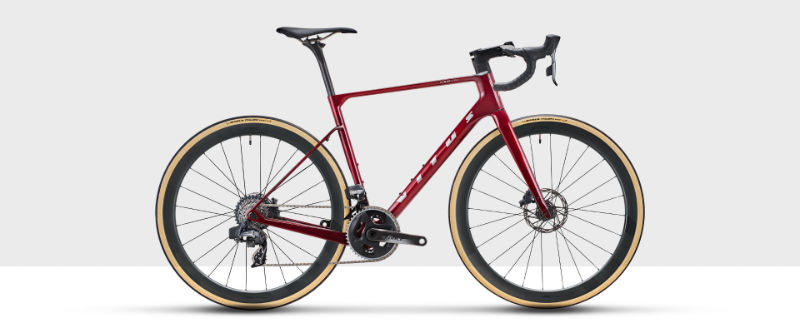

2025 Vitus Venon EVO-RS geometry
Full frame geometry for the 2025 Vitus Venon EVO-RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| XS | 518 | 373 | 74.6 | 70.7 | 71 | 420 | 1002 |
| S | 539 | 379 | 74.2 | 71.1 | 70 | 420 | 1007 |
| M | 560 | 387 | 73.8 | 71.5 | 70 | 420 | 1020 |
| L | 587 | 396 | 73.4 | 72.1 | 70 | 420 | 1030 |
| XL | 607 | 403 | 73 | 72.5 | 70 | 420 | 1039 |
| XXL | 625 | 414 | 73 | 72.7 | 70 | 420 | 1053 |
All measurements in millimetres unless marked (°) for angles.
