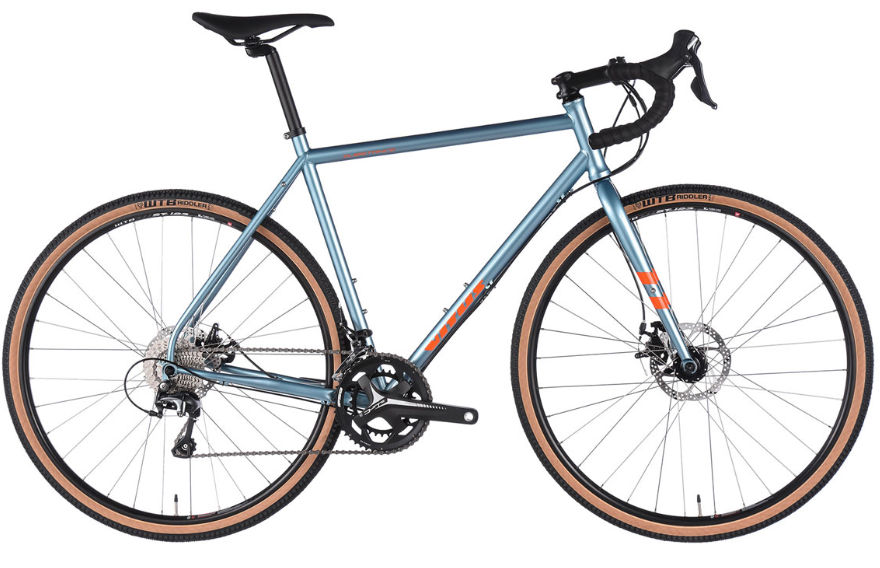

2019 Vitus Substance geometry
Full frame geometry for the 2019 Vitus Substance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 529 | 368 | 74.5 | 70 | 106 | 515 | 500 | 70 | 430 | 999 | 45 |
| S | 541 | 375 | 74 | 70 | 119 | 530 | 520 | 70 | 430 | 1010 | 45 |
| M | 564 | 379 | 73.5 | 71 | 139 | 546 | 540 | 70 | 430 | 1013 | 45 |
| L | 582 | 382 | 73 | 71 | 159 | 560 | 560 | 70 | 430 | 1022 | 45 |
| XL | 604 | 390 | 73 | 71.2 | 179 | 575 | 580 | 70 | 430 | 1030 | 45 |
| XXL | 621 | 405 | 73 | 71.5 | 195 | 595 | 600 | 70 | 430 | 1048 | 45 |
All measurements in millimetres unless marked (°) for angles.
