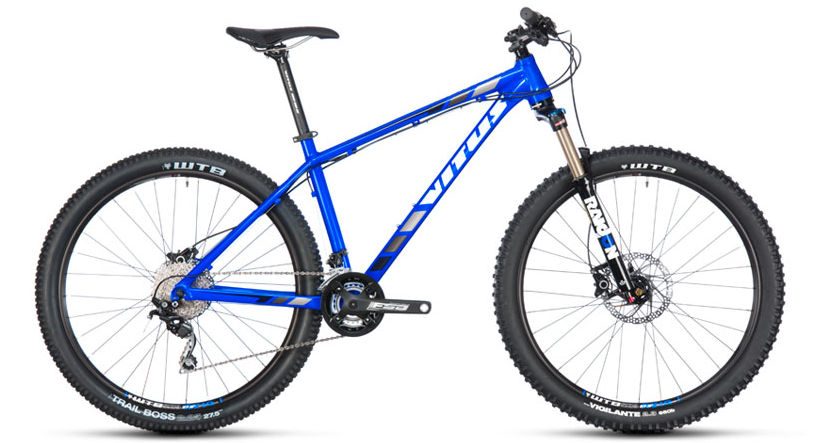

2015 Vitus Sentier geometry
Full frame geometry for the 2015 Vitus Sentier, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 400 | 74 | 67 | 105 | 570 | 380 | 35 | 425 | 1106 |
| M | 598 | 424 | 74 | 67 | 110 | 595 | 432 | 35 | 425 | 1132 |
| L | 607 | 446 | 74 | 67 | 120 | 620 | 483 | 35 | 425 | 1158 |
All measurements in millimetres unless marked (°) for angles.
