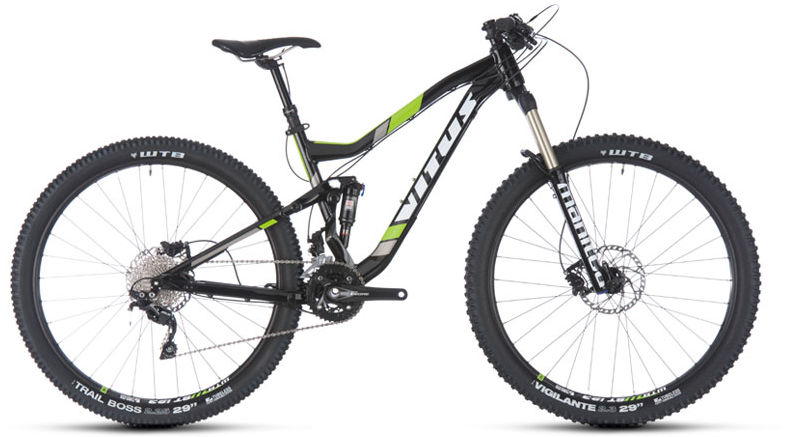

2015 Vitus Escarpe 290 geometry
Full frame geometry for the 2015 Vitus Escarpe 290, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 618 | 408 | 74.5 | 68 | 100 | 575 | 382 | 30 | 450 | 1151 |
| M | 627 | 430 | 74.5 | 68 | 110 | 600 | 433 | 30 | 450 | 1177 |
| L | 637 | 447 | 74.5 | 68 | 120 | 620 | 483 | 30 | 450 | 1198 |
| XL | 646 | 465 | 74.5 | 68 | 130 | 640 | 523 | 30 | 450 | 1219 |
All measurements in millimetres unless marked (°) for angles.
