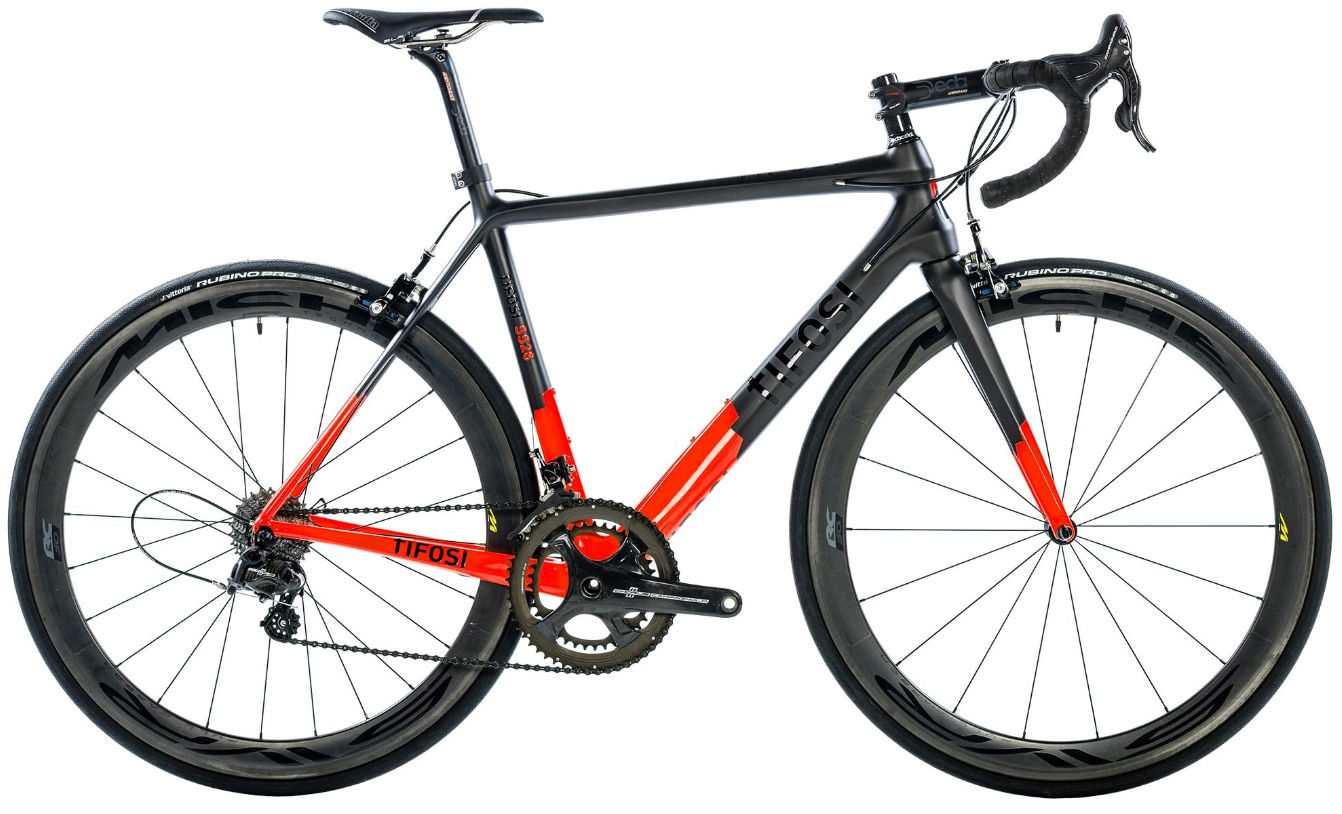

2017 Tifosi SS26 geometry
Full frame geometry for the 2017 Tifosi SS26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 375 | 74.5 | 71 | 110 | 515 | 490 | 766 | 68 | 974 |
| S | 527 | 379 | 74 | 72 | 130 | 530 | 520 | 794 | 68 | 976 |
| M | 548 | 388 | 74 | 73 | 150 | 545 | 540 | 815 | 68 | 983 |
| L | 567 | 392 | 73.5 | 73 | 170 | 560 | 560 | 836 | 68 | 992 |
| XL | 587 | 396 | 73 | 73.2 | 190 | 575 | 580 | 857 | 68 | 1000 |
All measurements in millimetres unless marked (°) for angles.
