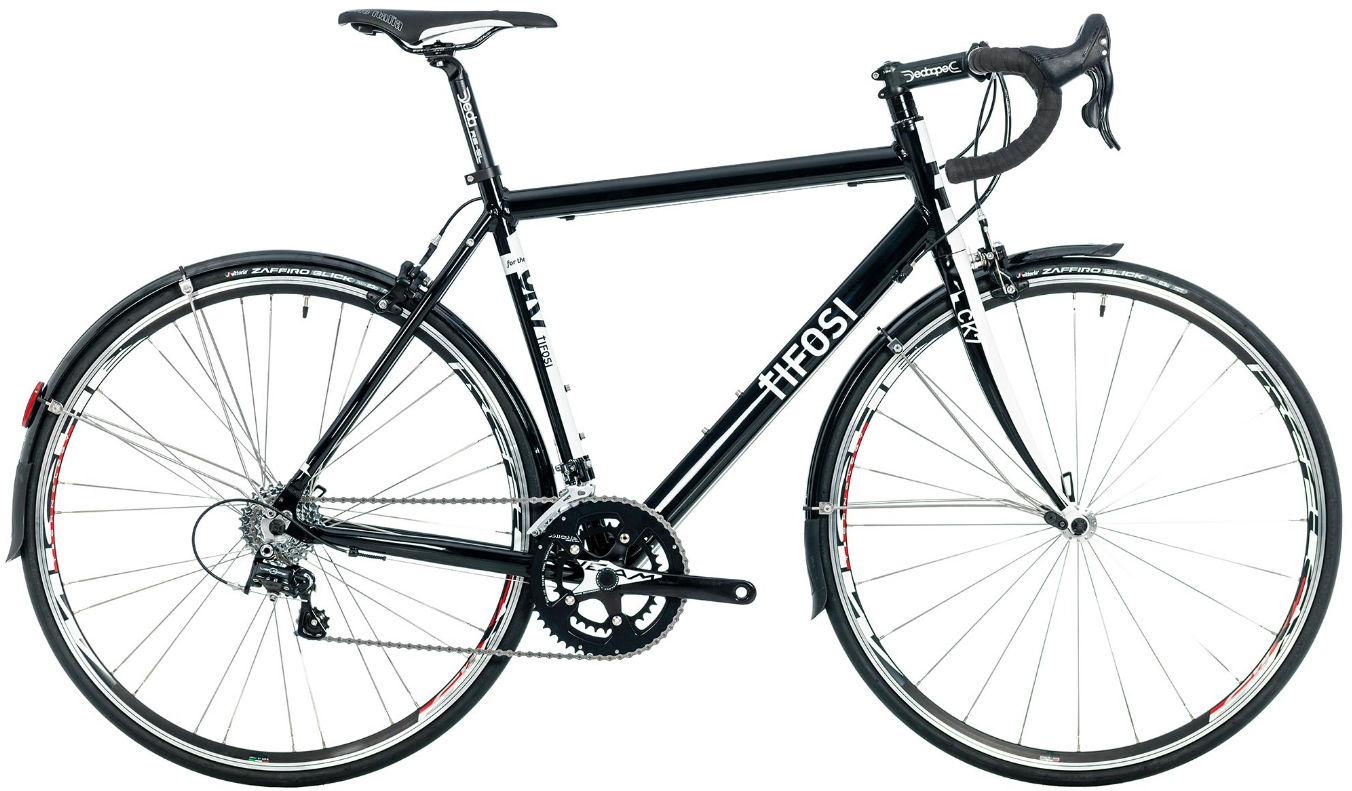

2017 Tifosi CK7 Granfondo geometry
Full frame geometry for the 2017 Tifosi CK7 Granfondo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 377 | 74.5 | 72 | 116 | 520 | 430 | 745 | 68 | 969 |
| S | 546 | 382 | 74.5 | 72.5 | 145 | 535 | 460 | 775 | 68 | 980 |
| M | 573 | 386 | 74 | 72.5 | 173 | 550 | 490 | 805 | 68 | 991 |
| L | 601 | 392 | 73.5 | 73 | 200 | 570 | 520 | 835 | 68 | 1001 |
| XL | 628 | 388 | 73 | 73 | 229 | 580 | 550 | 865 | 68 | 1005 |
All measurements in millimetres unless marked (°) for angles.
