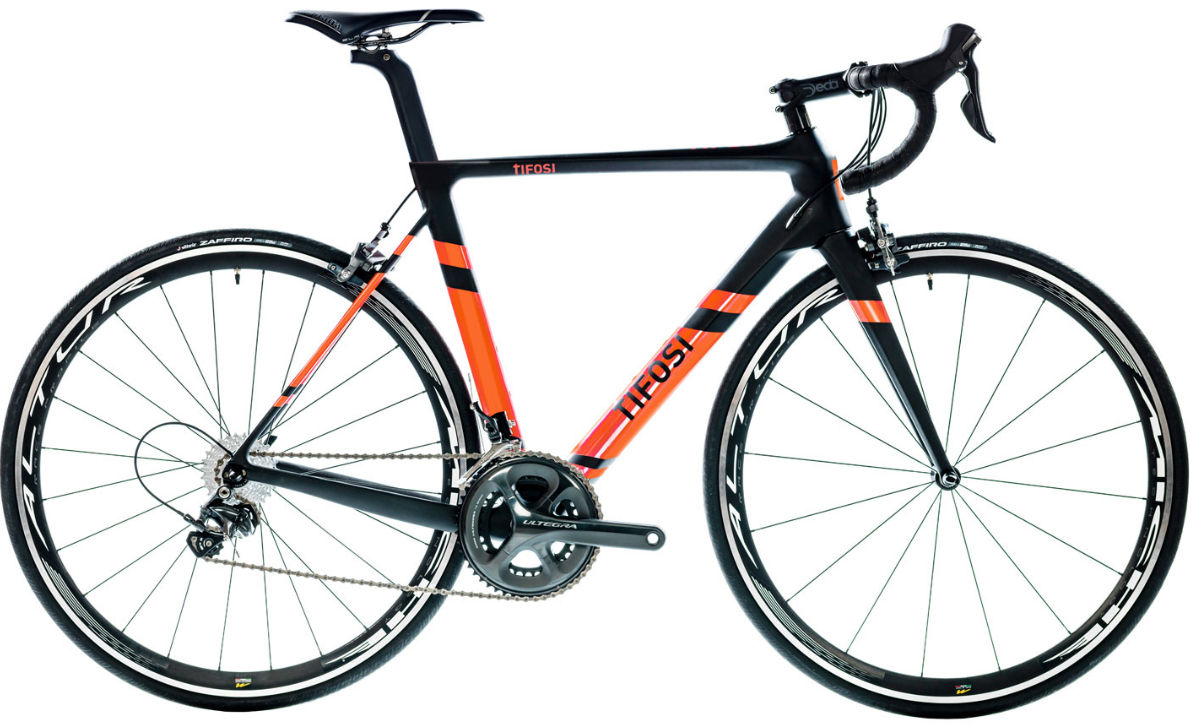

2017 Tifosi SS26 Aero geometry
Full frame geometry for the 2017 Tifosi SS26 Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 375 | 74.3 | 71.3 | 135 | 525 | 500 | 787 | 68 | 976 |
| S | 544 | 374 | 73.5 | 71.3 | 145 | 535 | 520 | 803 | 68 | 977 |
| M | 559 | 379 | 73 | 71.8 | 160 | 540 | 540 | 822 | 68 | 984 |
| L | 569 | 381 | 72.5 | 72 | 170 | 560 | 560 | 838 | 68 | 989 |
| XL | 590 | 384 | 72.5 | 72.5 | 190 | 570 | 580 | 859 | 68 | 992 |
All measurements in millimetres unless marked (°) for angles.
