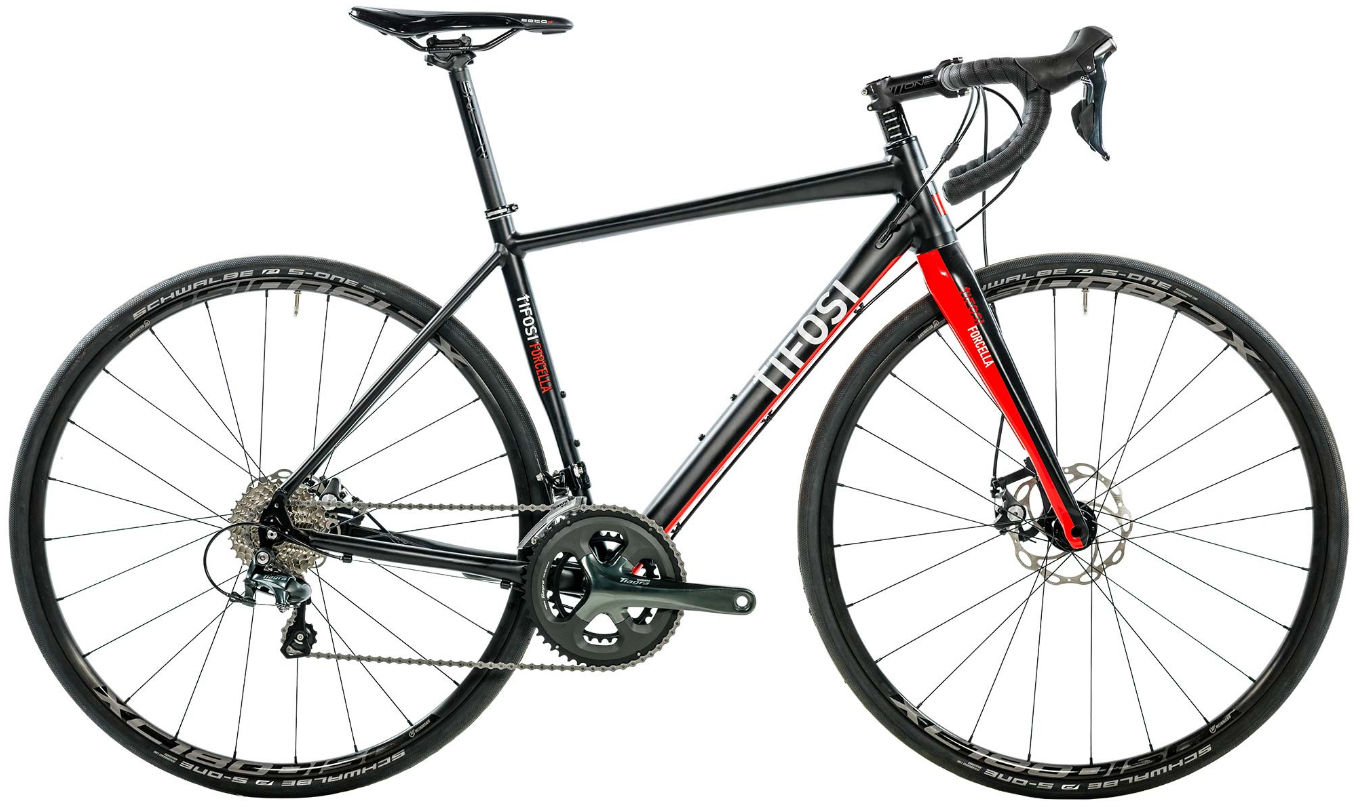

2017 Tifosi Forcella geometry
Full frame geometry for the 2017 Tifosi Forcella, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 532 | 374 | 73.5 | 72 | 145 | 540 | 510 | 802 | 68 | 986 |
| XS | 541 | 371 | 74.3 | 71.5 | 125 | 523 | 470 | 785 | 68 | 982 |
| S | 551 | 370 | 73.8 | 71.5 | 135 | 503 | 490 | 801 | 68 | 984 |
| L | 599 | 387 | 73 | 73 | 180 | 570 | 530 | 847 | 68 | 1001 |
| XL | 608 | 404 | 73 | 73 | 190 | 590 | 550 | 862 | 68 | 1021 |
All measurements in millimetres unless marked (°) for angles.
