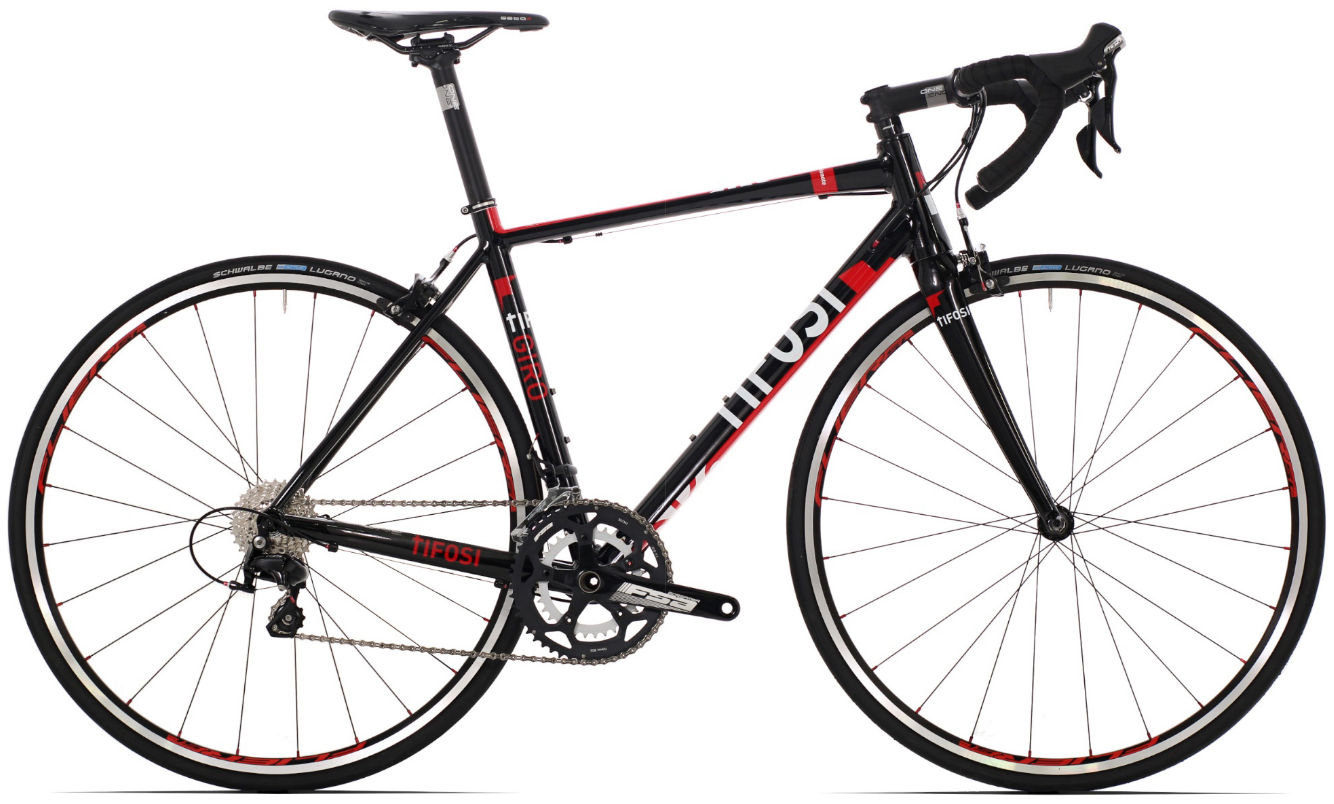

2017 Tifosi CK3 Giro geometry
Full frame geometry for the 2017 Tifosi CK3 Giro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 372 | 74.3 | 72.5 | 135 | 523 | 500 | 788 | 68 | 965 |
| S | 547 | 376 | 73.8 | 73 | 145 | 535 | 520 | 804 | 68 | 968 |
| M | 557 | 382 | 73.5 | 73 | 155 | 547 | 540 | 820 | 68 | 977 |
| L | 571 | 395 | 73 | 73 | 170 | 570 | 560 | 838 | 68 | 983 |
| XL | 581 | 412 | 73 | 73 | 180 | 590 | 580 | 854 | 68 | 995 |
All measurements in millimetres unless marked (°) for angles.
