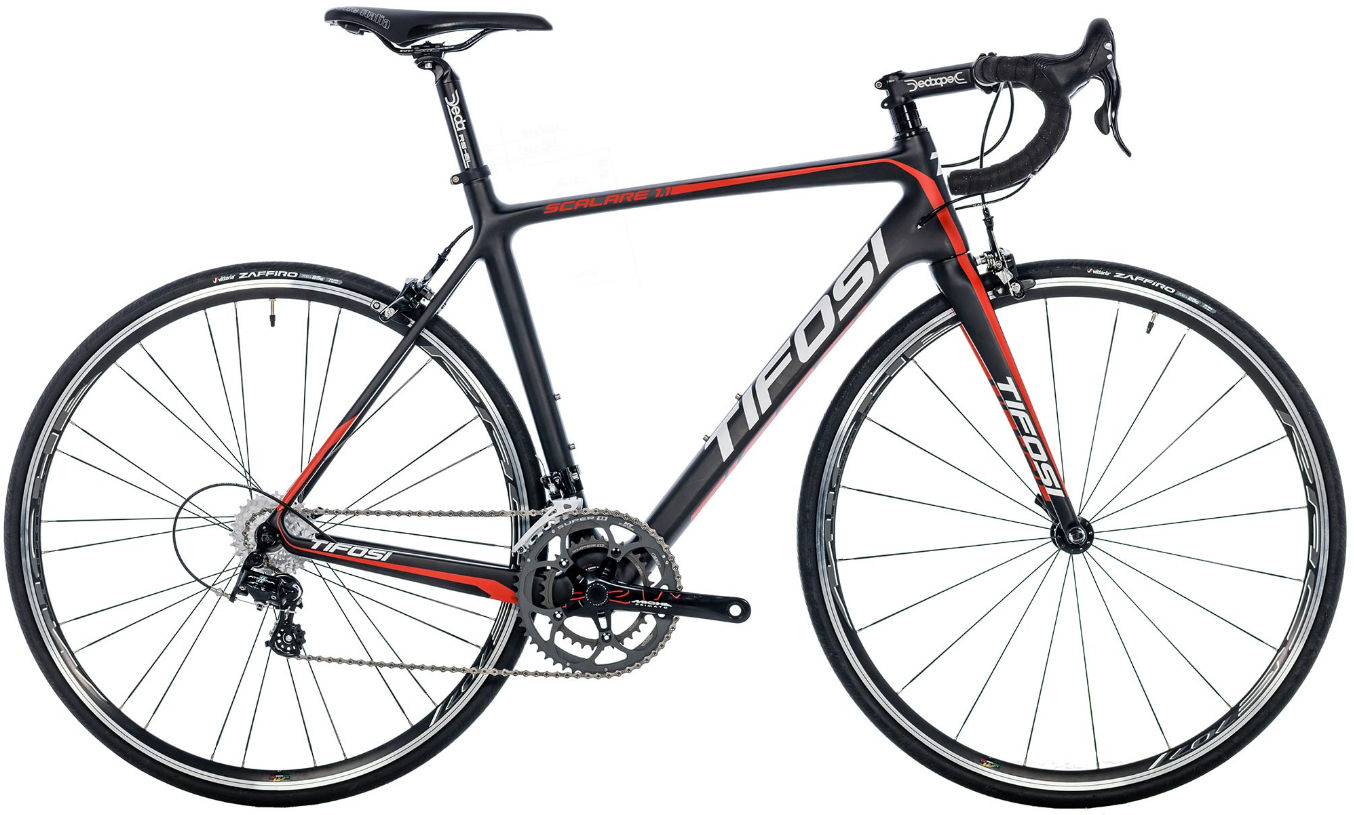

2017 Tifosi Scalare geometry
Full frame geometry for the 2017 Tifosi Scalare, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 383 | 74.5 | 72.5 | 105 | 525 | 480 | 765 | 68 | 965 |
| S | 523 | 385 | 73.5 | 72.5 | 120 | 540 | 510 | 788 | 68 | 972 |
| M | 558 | 386 | 73.5 | 73 | 155 | 550 | 540 | 821 | 68 | 978 |
| L | 589 | 390 | 73 | 73 | 190 | 565 | 570 | 853 | 68 | 992 |
| XL | 613 | 393 | 73 | 73 | 215 | 580 | 600 | 880 | 68 | 1007 |
All measurements in millimetres unless marked (°) for angles.
