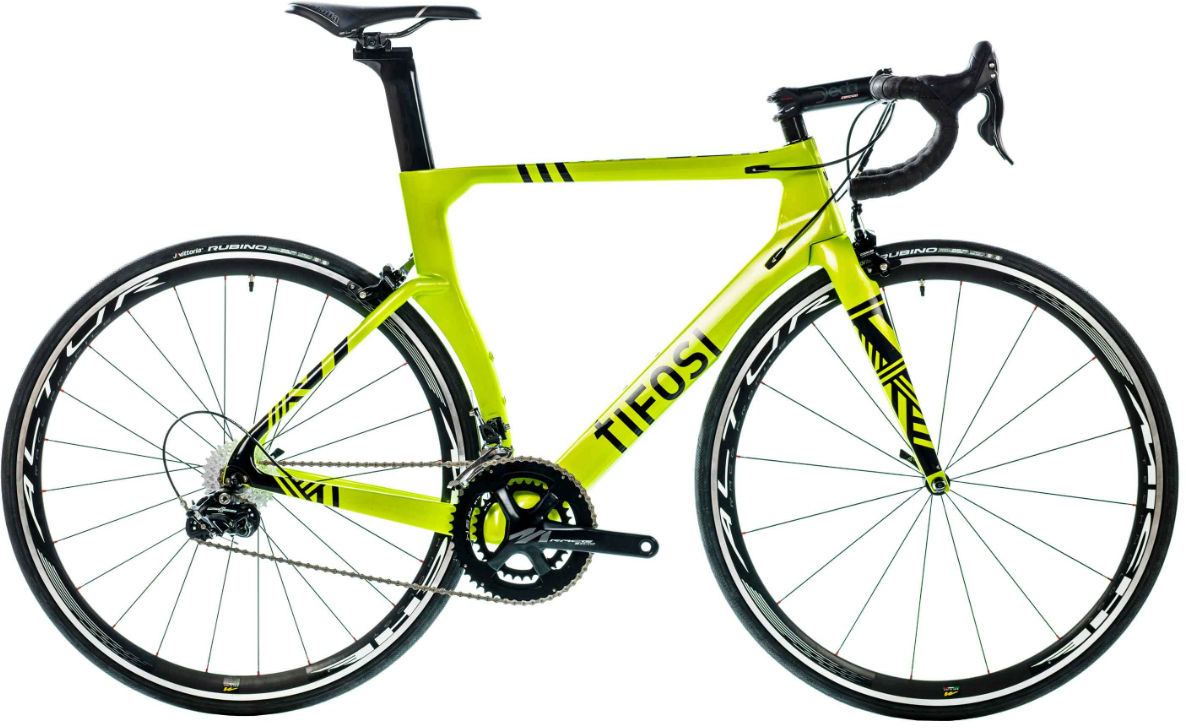

2017 Tifosi Auriga geometry
Full frame geometry for the 2017 Tifosi Auriga, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 369 | 74.5 | 71.5 | 130 | 515 | 480 | 773 | 68 | 966 |
| S | 534 | 377 | 74.5 | 72 | 135 | 525 | 500 | 786 | 68 | 972 |
| M | 540 | 379 | 74 | 72.3 | 140 | 535 | 520 | 801 | 68 | 972 |
| L | 561 | 380 | 73.5 | 73 | 160 | 545 | 540 | 822 | 68 | 972 |
| XL | 580 | 388 | 73.5 | 73 | 180 | 560 | 560 | 842 | 68 | 988 |
All measurements in millimetres unless marked (°) for angles.
