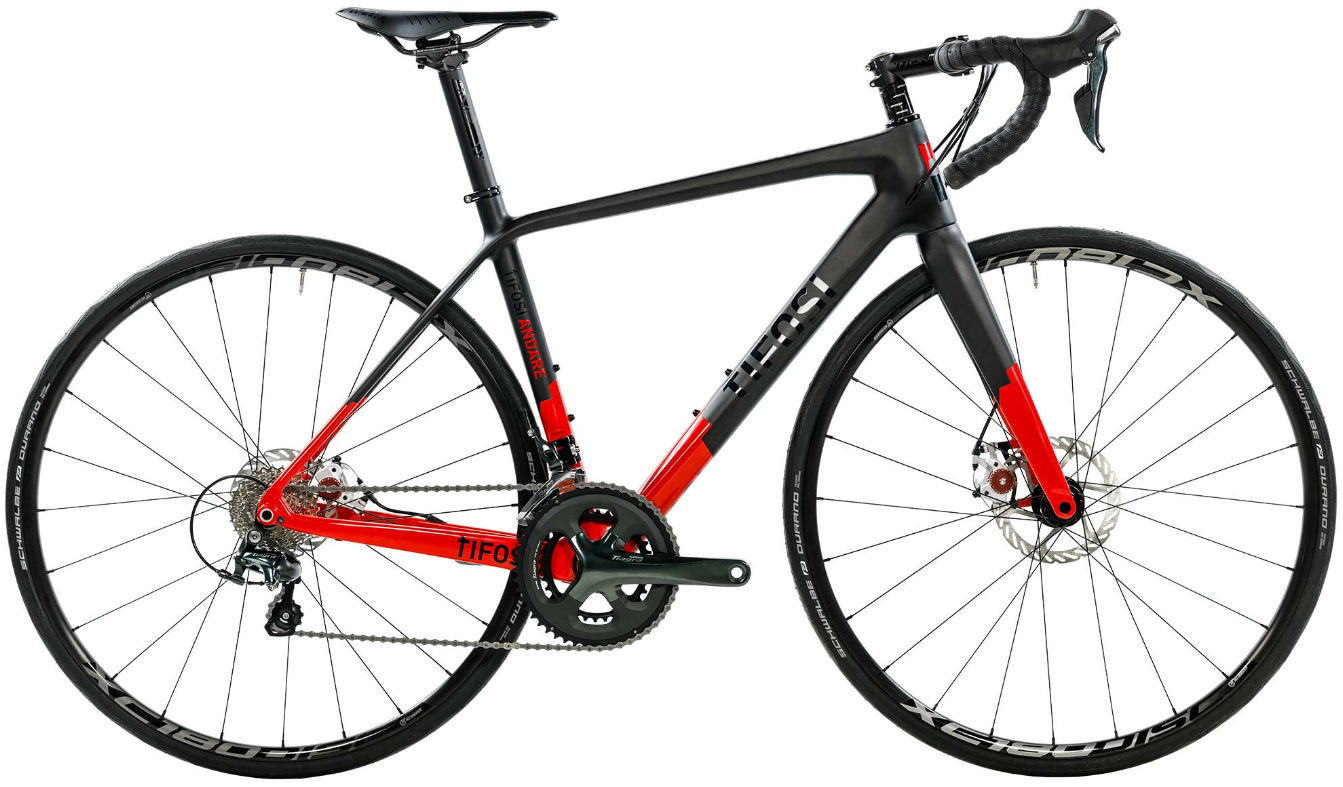

2017 Tifosi Andare geometry
Full frame geometry for the 2017 Tifosi Andare, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526 | 375 | 74.3 | 72.5 | 125 | 523 | 460 | 762 | 68 | 965 |
| S | 537 | 379 | 73.8 | 73 | 135 | 535 | 480 | 779 | 68 | 968 |
| M | 548 | 385 | 73.5 | 73 | 145 | 547 | 500 | 795 | 68 | 977 |
| L | 561 | 398 | 73 | 73 | 160 | 570 | 520 | 813 | 68 | 996 |
| XL | 571 | 415 | 73 | 73 | 170 | 590 | 540 | 828 | 68 | — |
All measurements in millimetres unless marked (°) for angles.
