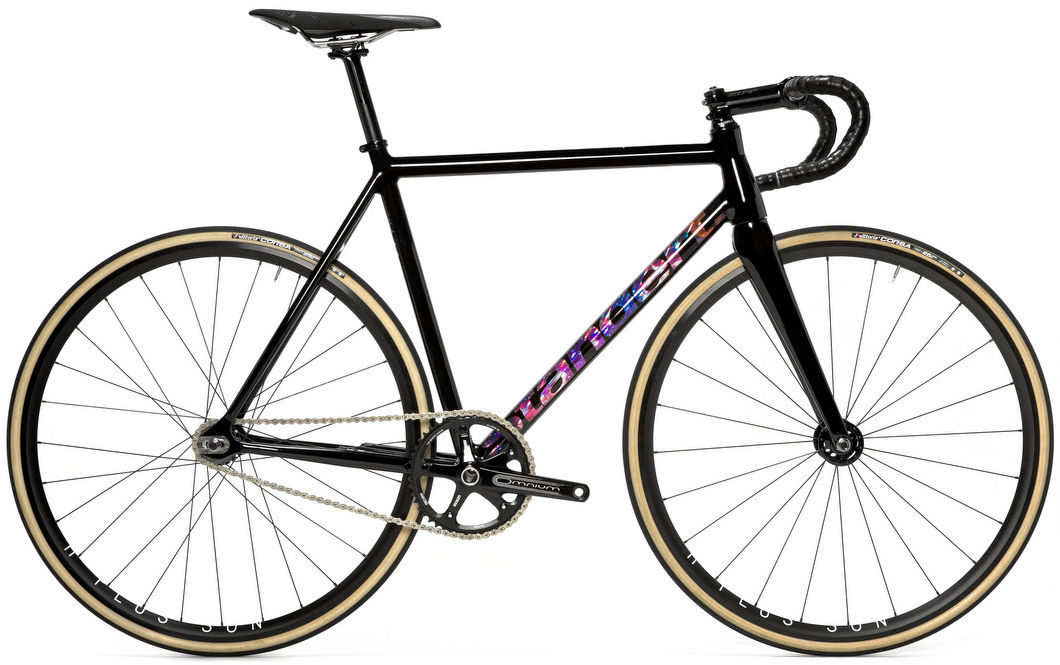

2016 Standert Umlaufbahn Ep 1.2 geometry
Full frame geometry for the 2016 Standert Umlaufbahn Ep 1.2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 499 | 377 | 74 | 74 | 111 | 520 | 786 | 68 |
| S | 519 | 391 | 74 | 74 | 134 | 540 | 806 | 68 |
| M | 534 | 402 | 74 | 74 | 150 | 555 | 822 | 68 |
| L | 555 | 416 | 74 | 74.5 | 169 | 575 | 843 | 68 |
| XL | 574 | 426 | 74 | 74.5 | 190 | 590 | 862 | 68 |
All measurements in millimetres unless marked (°) for angles.
