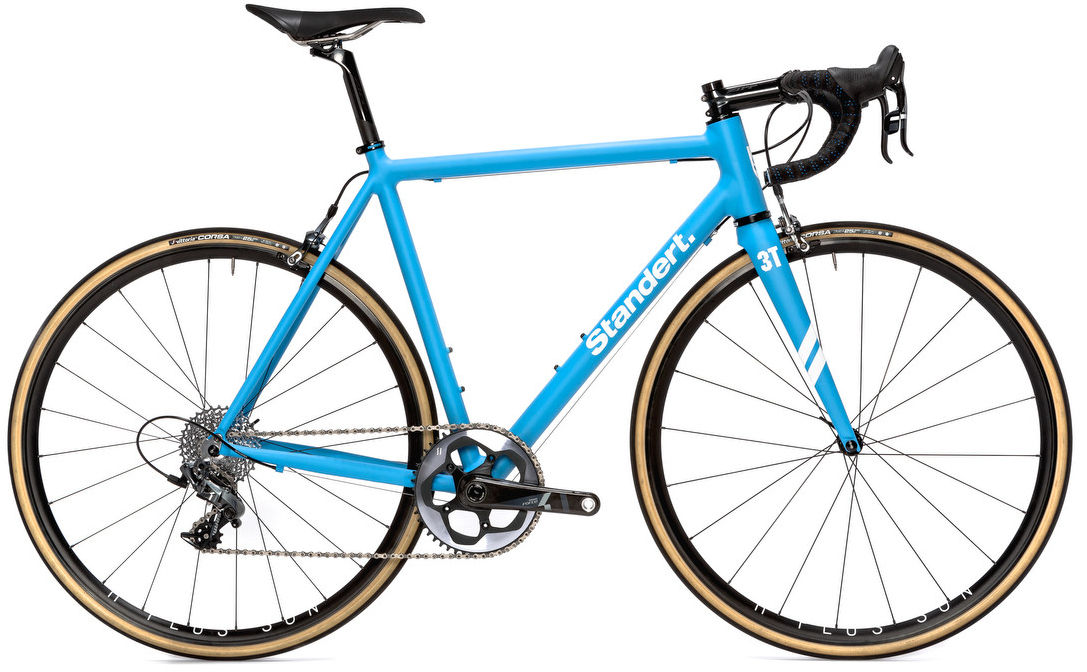

2016 Standert Kreissage geometry
Full frame geometry for the 2016 Standert Kreissage, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 525 | 364 | 73 | 72.5 | 114 | 525 | 808 | 68 |
| S | 540 | 375 | 73.5 | 73 | 129 | 535 | 823 | 68 |
| M | 565 | 388 | 73.5 | 73.5 | 153 | 555 | 848 | 68 |
| L | 585 | 397 | 73.5 | 73.5 | 174 | 570 | 869 | 68 |
| XL | 595 | 409 | 73.5 | 74 | 180 | 585 | 879 | 68 |
All measurements in millimetres unless marked (°) for angles.
