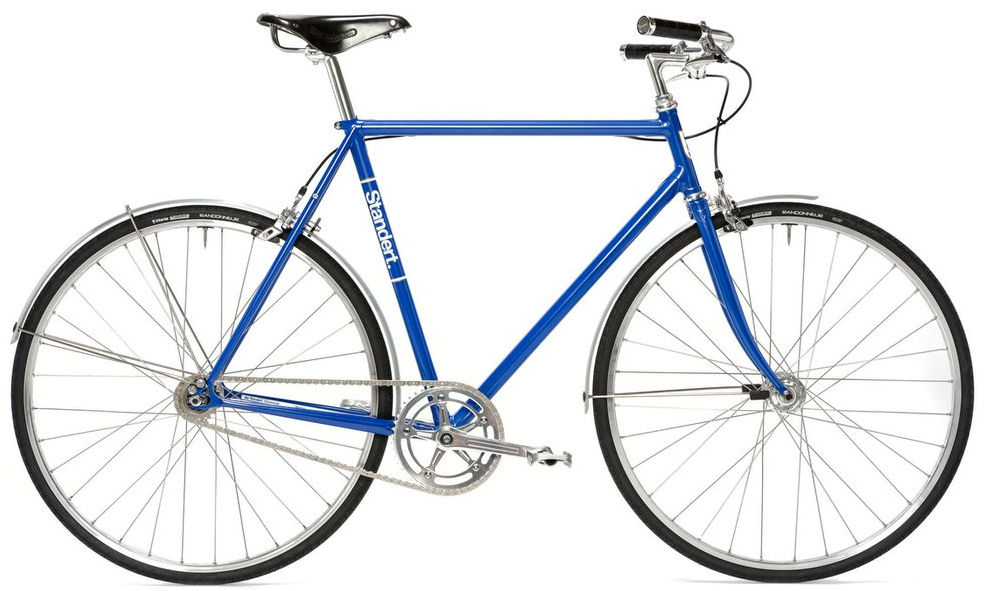

2016 Standert Herr geometry
Full frame geometry for the 2016 Standert Herr, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 523 | 378 | 74 | 71 | 107 | 530 | 808 | 68 |
| S | 536 | 380 | 73.5 | 72 | 118 | 540 | 823 | 68 |
| M | 555 | 385 | 73.5 | 72.5 | 135 | 550 | 843 | 68 |
| L | 573 | 395 | 73 | 73 | 154 | 570 | 863 | 68 |
| XL | 592 | 409 | 73 | 73.5 | 171 | 590 | 883 | 68 |
All measurements in millimetres unless marked (°) for angles.
