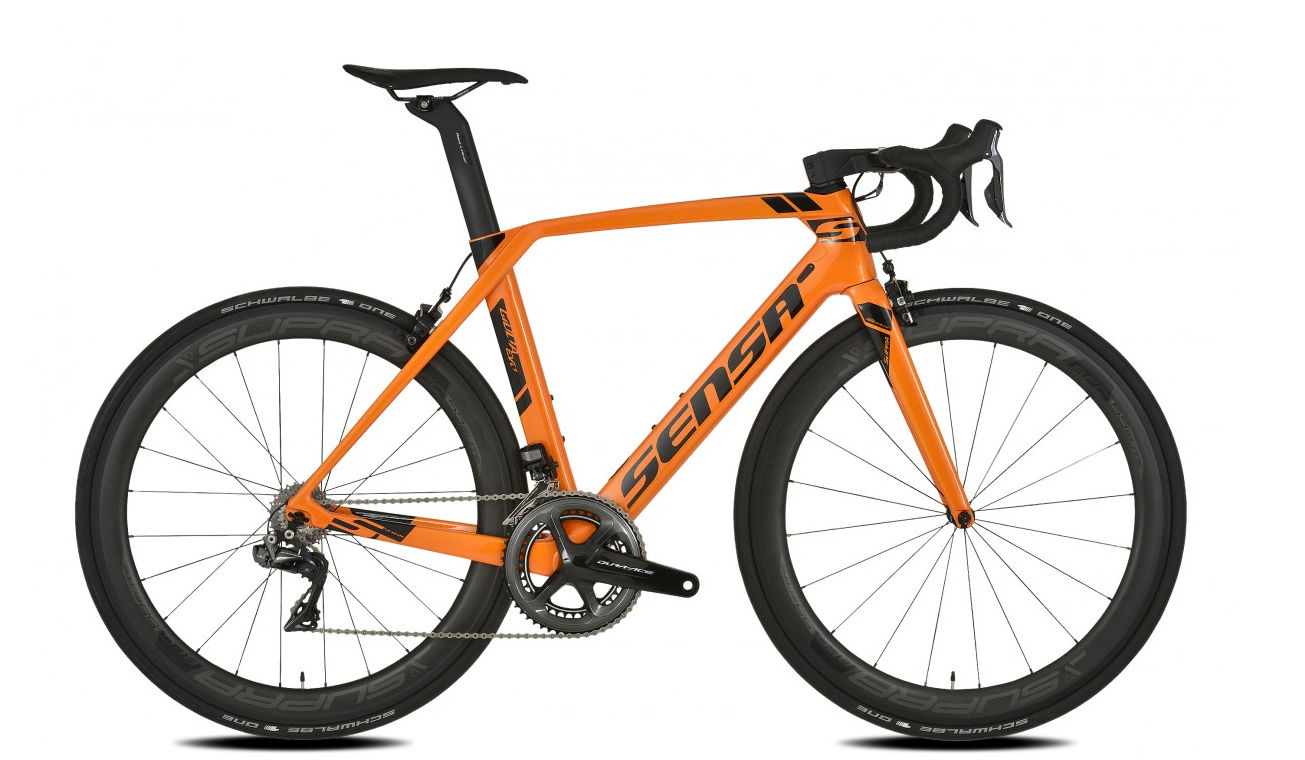

2018 Sensa Giulia Evo geometry
Full frame geometry for the 2018 Sensa Giulia Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 520 | 379 | 74.5 | 72 | 112 | 523 | 467 | 761 | 70 | 410 | 976 | 45 |
| 53 | 550 | 384 | 74 | 73 | 140 | 542 | 503 | 795 | 70 | 410 | 982 | 45 |
| 55 | 570 | 390 | 73.5 | 73 | 161 | 559 | 522 | 815 | 70 | 410 | 994 | 45 |
| 58 | 590 | 395 | 73 | 73 | 181 | 575 | 541 | 836 | 70 | 410 | 1005 | 45 |
| 61 | 610 | 401 | 72.7 | 73.5 | 201 | 591 | 564 | 859 | 70 | 410 | 1012 | 45 |
All measurements in millimetres unless marked (°) for angles.
