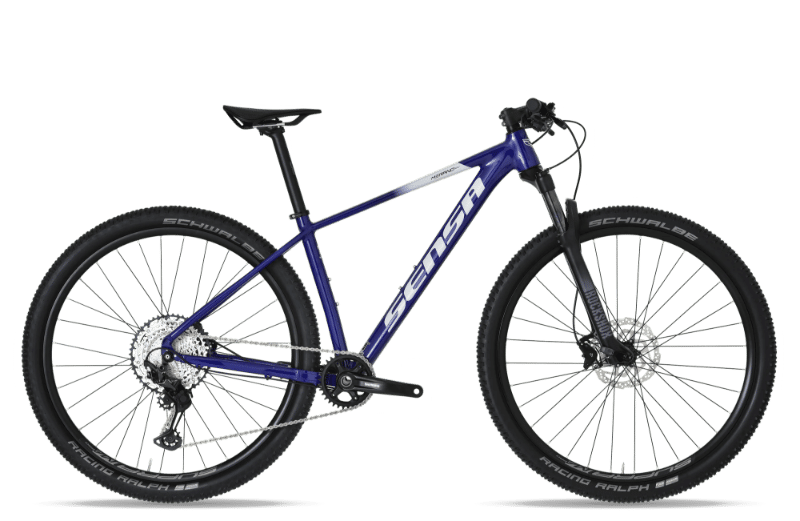

2026 Sensa Merano XC geometry
Full frame geometry for the 2026 Sensa Merano XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|
| 17 | 608.7 | 418 | 73.5 | 68.8 | 95 | 572.1 | 1113.4 | 46 |
| 19 | 618.1 | 438 | 73.5 | 68.8 | 105 | 592.4 | 1137 | 46 |
| 21 | 636.7 | 458 | 73.5 | 68.8 | 125 | 618.9 | 1164.2 | 46 |
All measurements in millimetres unless marked (°) for angles.
