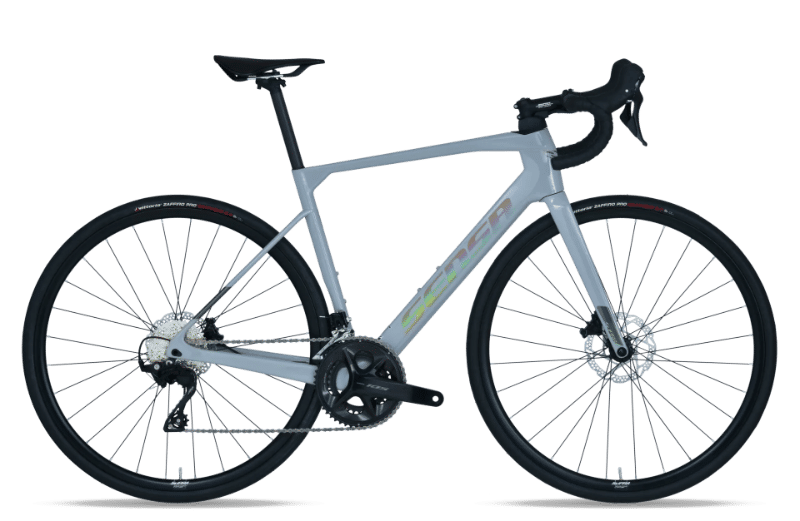

2026 Sensa Giulia GF geometry
Full frame geometry for the 2026 Sensa Giulia GF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 523 | 378 | 74.5 | 71.7 | 115 | 523 | 456 | 71 | 410 | 979 | 45 |
| 53 | 553 | 384 | 74 | 72.7 | 143 | 543 | 492 | 71 | 410 | 985 | 45 |
| 55 | 576 | 389 | 73.5 | 72.7 | 167 | 559 | 517 | 71 | 410 | 997 | 45 |
| 58 | 595 | 393 | 73 | 73 | 186 | 575 | 538 | 71 | 410 | 1004 | 45 |
| 61 | 617 | 399 | 72.7 | 73.5 | 207 | 591 | 564 | 71 | 410 | 1012 | 45 |
All measurements in millimetres unless marked (°) for angles.
