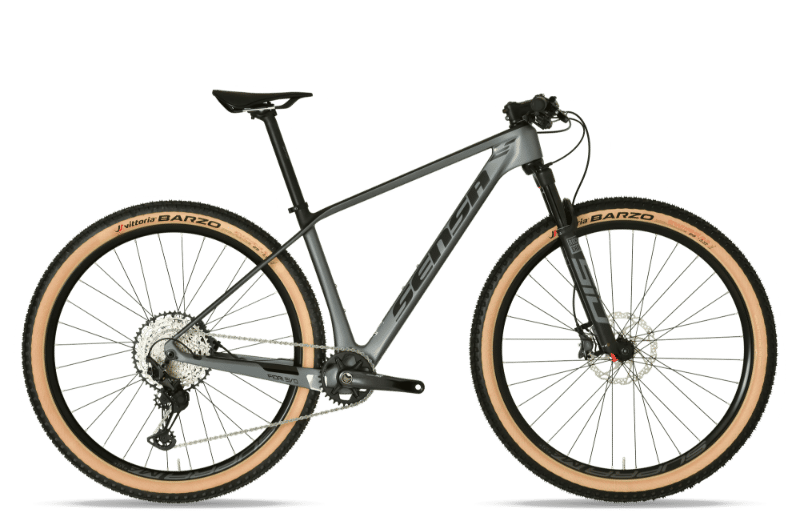

2026 Sensa Fiori Evo geometry
Full frame geometry for the 2026 Sensa Fiori Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17" | 609 | 422 | 73.8 | 69.8 | 95 | 600 | 63 | 429 | 1102 | 51 |
| 19" | 619 | 443 | 73.8 | 69.8 | 105 | 621.5 | 63 | 429 | 1126 | 51 |
| 21" | 638 | 464 | 73.8 | 69.8 | 125 | 645 | 63 | 429 | 1154 | 51 |
All measurements in millimetres unless marked (°) for angles.
